Product Description

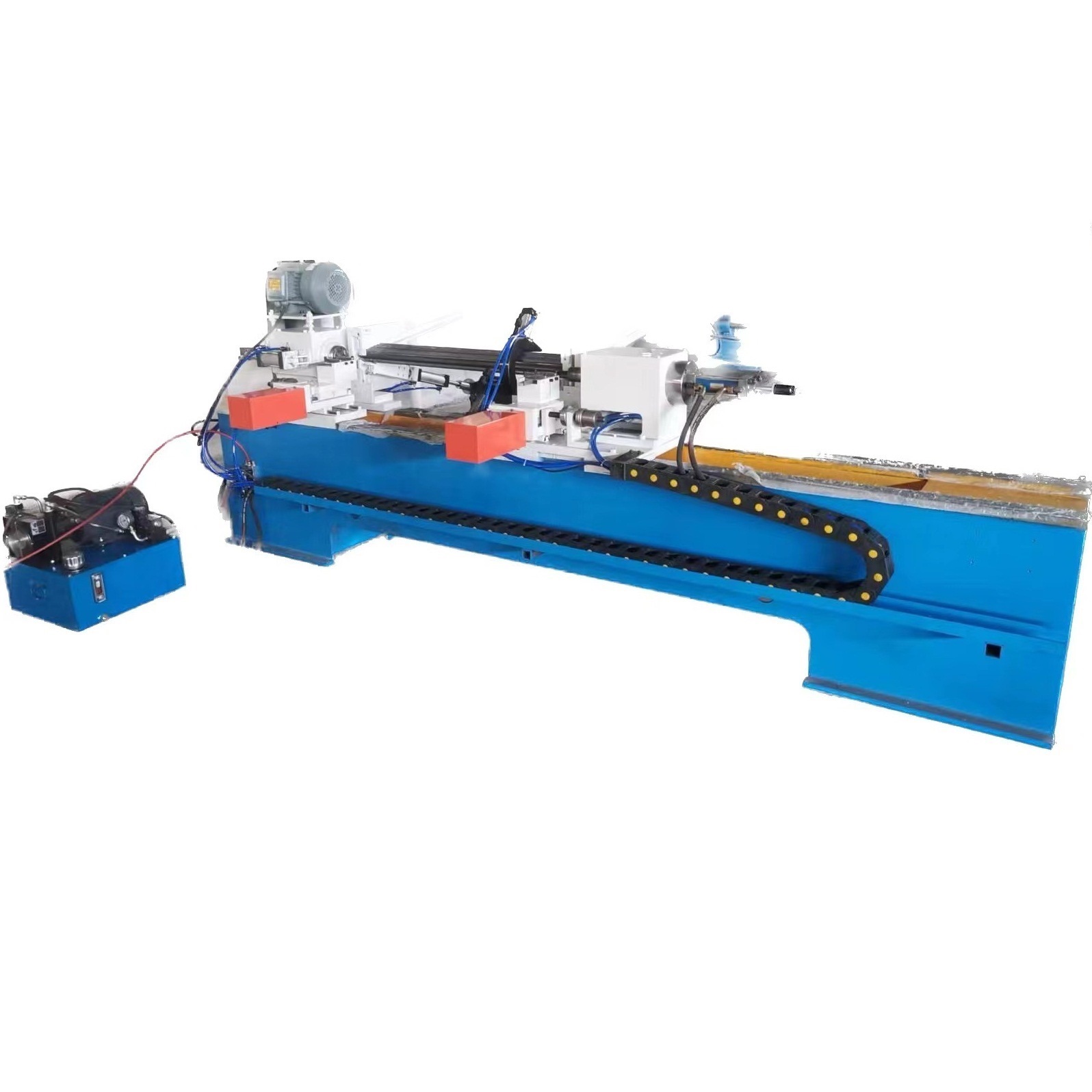

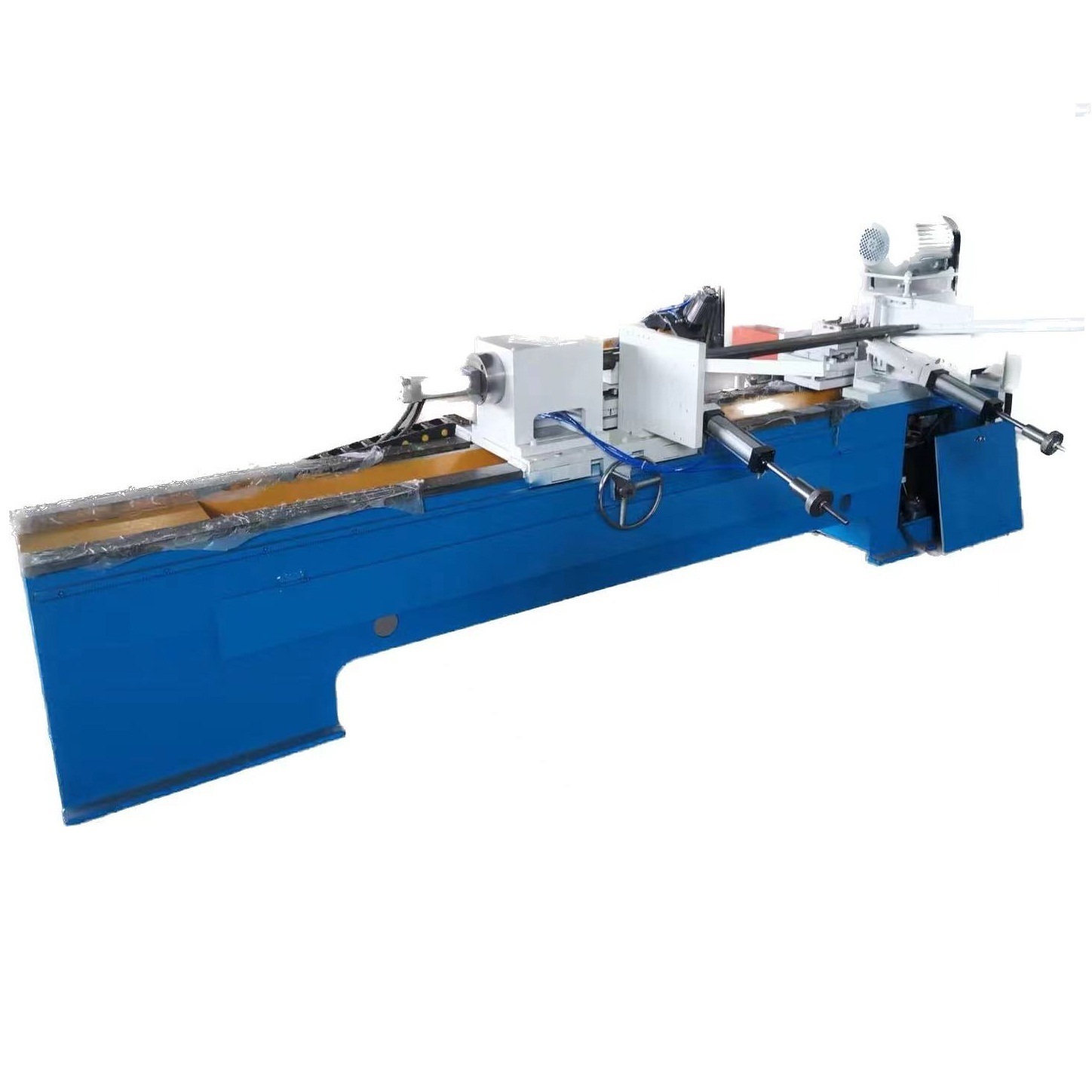

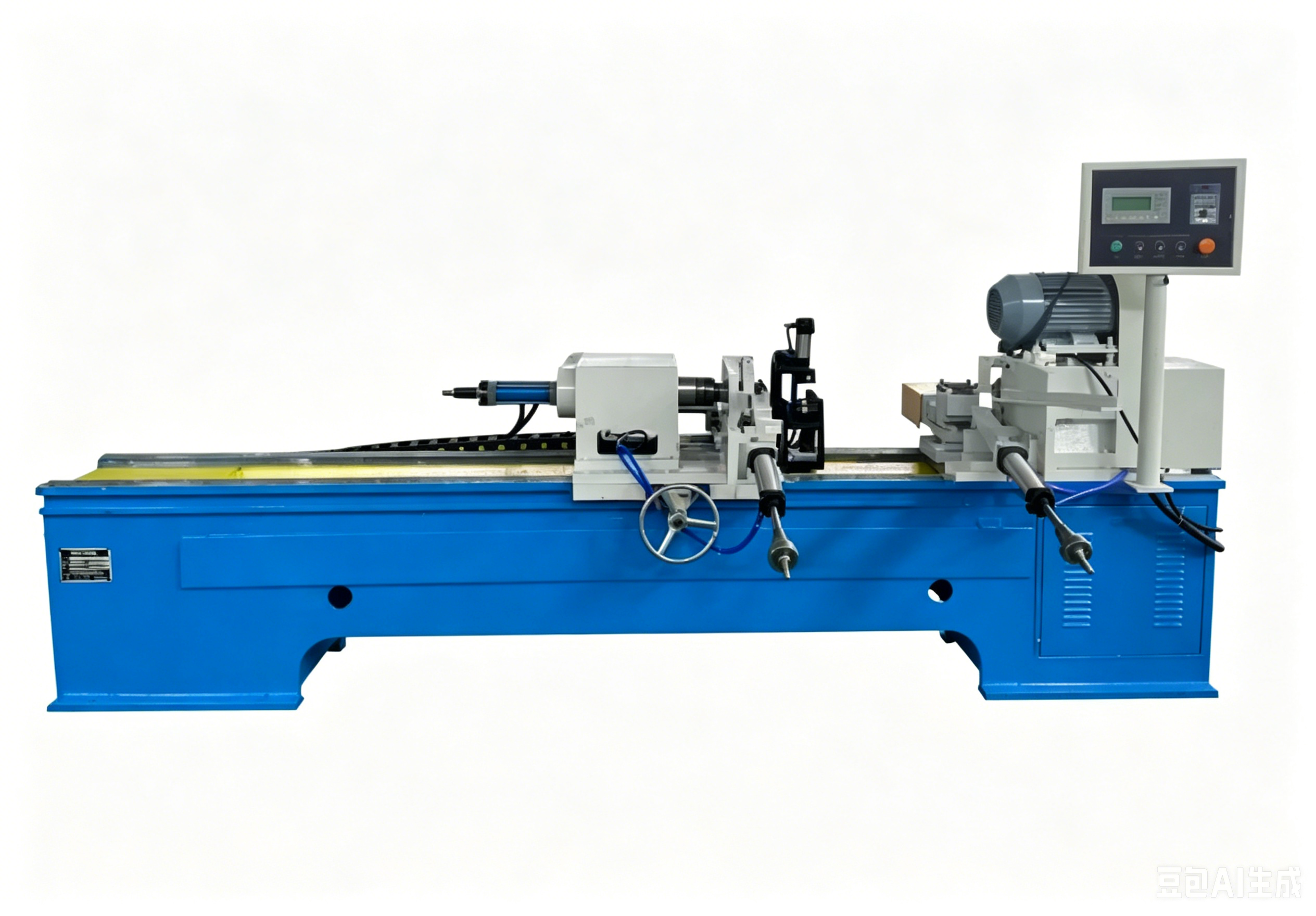

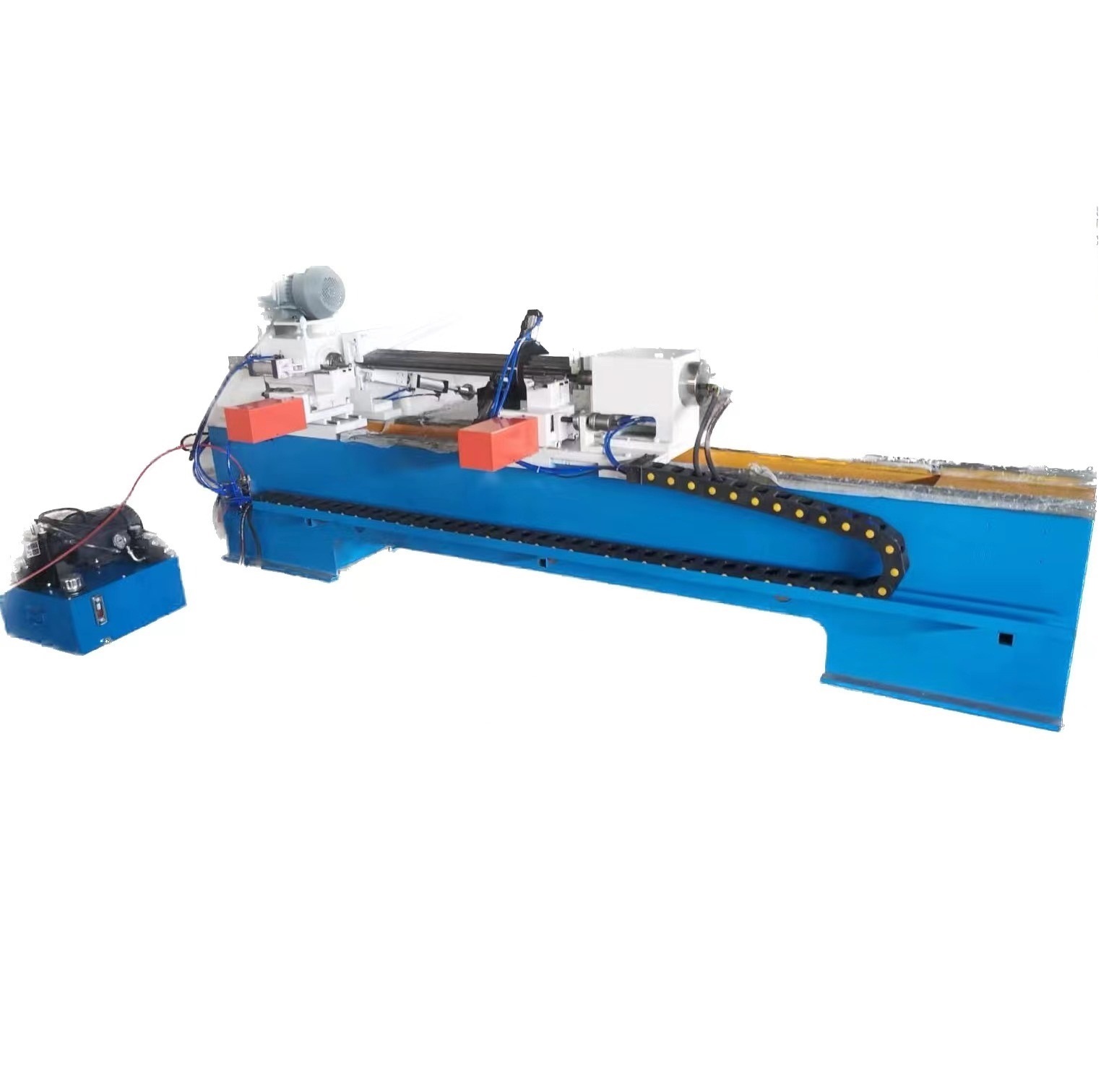

PLC Mining Conveyor Roller Making Machine Steel Shaft Bar 2 Ends Snap Ring Circlip Auto Grooving Machine
FEATURES AT A GLANCE
* The machine only uses the domestic advanced superposition valve hydraulic system to realize the fast forward and fast backward of feed speed,.
* It can be stepless speed regulation, less auxiliary working hours and high work efficiency.
* It can process double snap spring groove and single snap spring groove of shaft head, and both ends can be processed at the same time.
PRODUCT OVERVIEW
The product is an automatic special equipment for processing the circlip grooves at both ends of the idler shaft of belt conveyor. It is suitable for the production and processing of idler shafts at home and abroad.
It’s automatic special equipment for processing circlip groove of roller shaft, used for processing roller shaft both home and abroad. It adapts Manifold Valves hydraulic system to realize cutter’s fast feeding and retracting, with stepless speed regulation and high working efficiency. Both double circlip groove and single circlip groove can be processed, two ends at the same time. Making Delta brand PLC centered and advanced non contact switch as limit switch to control the programme. Working is steady and reliable, high level automation which can be used for processing roller shaft in lot.
HA conveyor is a stockist and distributor of roller making machine. The company provides customers with quality products that meet all the world standards and are manufactured to be directly interchangeable with other recognised manufacturers brands, all at extremely competitive prices. HA roller machines are widely used in collieries, quarries, timber mills, gold mines, iron ore plants and bulk material handling facilities.
1 . This product is an automated specialized equipment for processing the spring grooves at both ends of the roller shaft of a belt conveyor.
2 . The machine adopts Taiwan's Delta programmable logic controller (PLC) as the core, with advanced contactless switches as limit switches for program control; By using a CNC motor for cutting, the cutting speed can be adjusted according to the actual situation.
3 . It can have stepless speed regulation, manual discharge of equipment, automatic groove cutting and automatic material dropping, and one person can guard multiple machines, with high work efficiency.
4 . Both ends of the shaft are processed simultaneously, with precise and adjustable groove spacing.
5 . Stable and reliable work, high degree of automation, suitable for batch processing of roller shafts.
PRODUCT SPECIFICATION
| specification | HAC-2040 | HAC-2050 |
| outer diameter of shaft |
Φ20~Φ40mm |
Φ20~Φ50mm |
| length of roller shaft |
200~2200mm |
200~2700mm |
| width of machining groove |
1-3 mm |
1-3 mm |
| cutting depth |
0~3 mm |
0~3 mm |
| rotation speed of spindle |
150-1400 rpm |
150-1400 rpm |
| spindle motor |
3-4 kW |
3-4 kW |
| knife feed in mode |
digital control, servo control |
digital control, servo control |
| repeat positioning accuracy |
0.02 mm |
0.02 mm |
| status of work |
auto loading and unloading, auto processing | auto loading and unloading, auto processing |
| configuration of knife tool |
formed knife |
formed knife |
| machine size | 3700*1200*1100mm |
4000*1200*1100mm |
| machine weight | 2000kg | 2500kg |

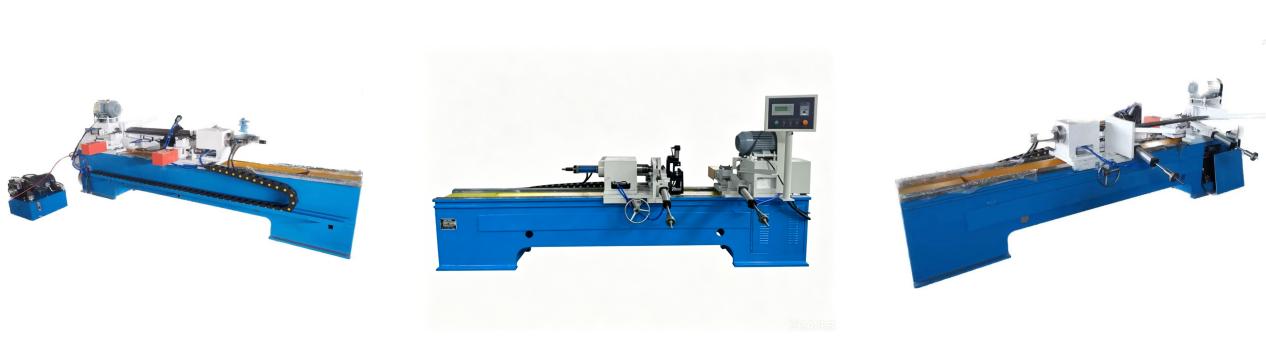

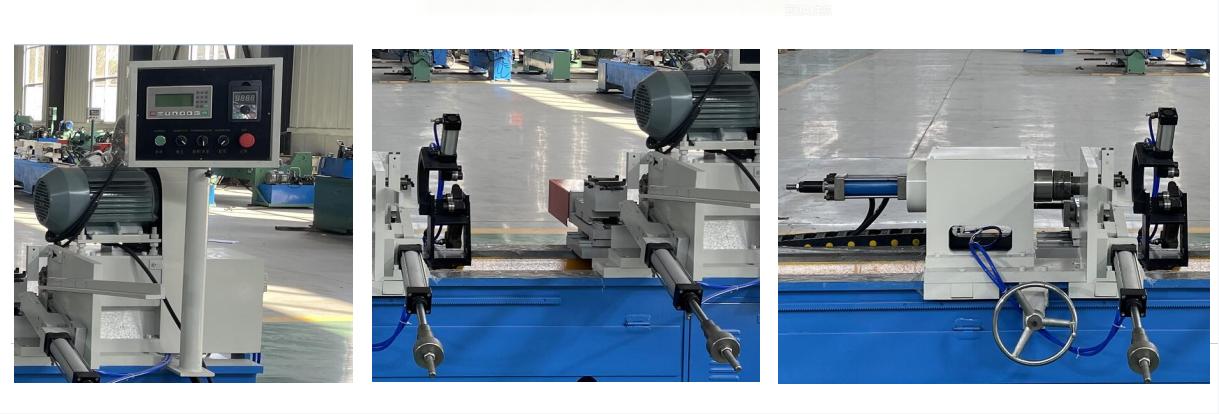

PRODUCT CONFIGURATION

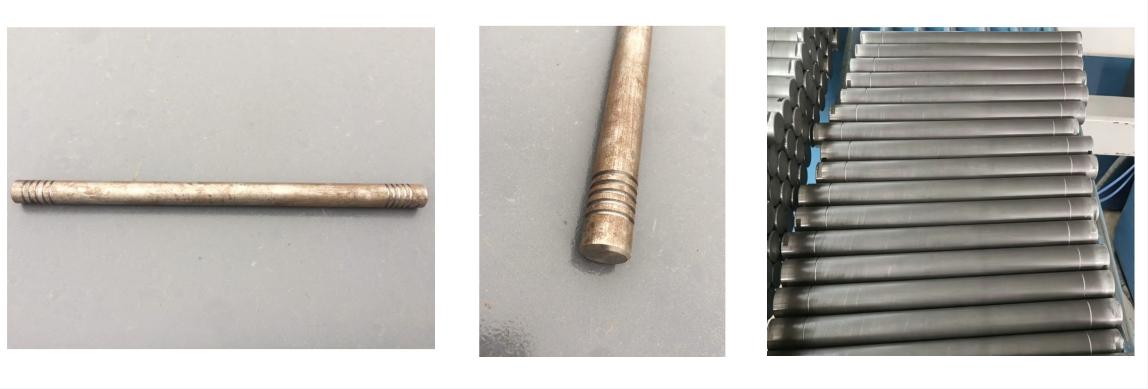

FINISHED SHAFT ENDS
FACTORY SHOW
CE CERTIFICATE/ EU STANDARDS
CUSTOMER VISITING FACTORY & CHECKING QUALITY
PACKAGE & SHIPPING
GOOD COMMENT FROM CUSTOMERS
SALES & SERVICE NETWORK
FAQ
Q1：How can I know machine is that I need?
A1：Contact our sales, add whatsapp 008618226192162 or email haconveyor@gmail.com for machine detail and your requirement.
Q2 : Can you install machine or test machine in customer site?
A2 : Yes, we can go abroad to customer's site to install and test machine, and train their workers to use machine. or we can guide online.
Q3 : Do you provide spare parts?
A3 : Yes, we provide 2 years spare parts for free.
Q4 : What trade terms do you support?
A4 : We accept FOB China port, CIF, EXW.
Q5 : What payment terms do you accept?
A5 : We accept transfer by T/T, L/C at sight.
Q6 : What about your delivery time?
A6 : single machine is 15-20 nature days, machine line is not more than 60 nature days.
PLC Mining Conveyor Roller Making Machine Steel Shaft Bar 2 Ends Snap Ring Circlip Auto Grooving Machine
* The machine only uses the domestic advanced superposition valve hydraulic system to realize the fast forward and fast backward of feed speed,. * It can be stepless speed regulation, less auxiliary working hours and high work efficiency. * It can process double snap spring groove and single snap spring circlip groove of shaft head, and both ends can be processed at the same time.
Related Products

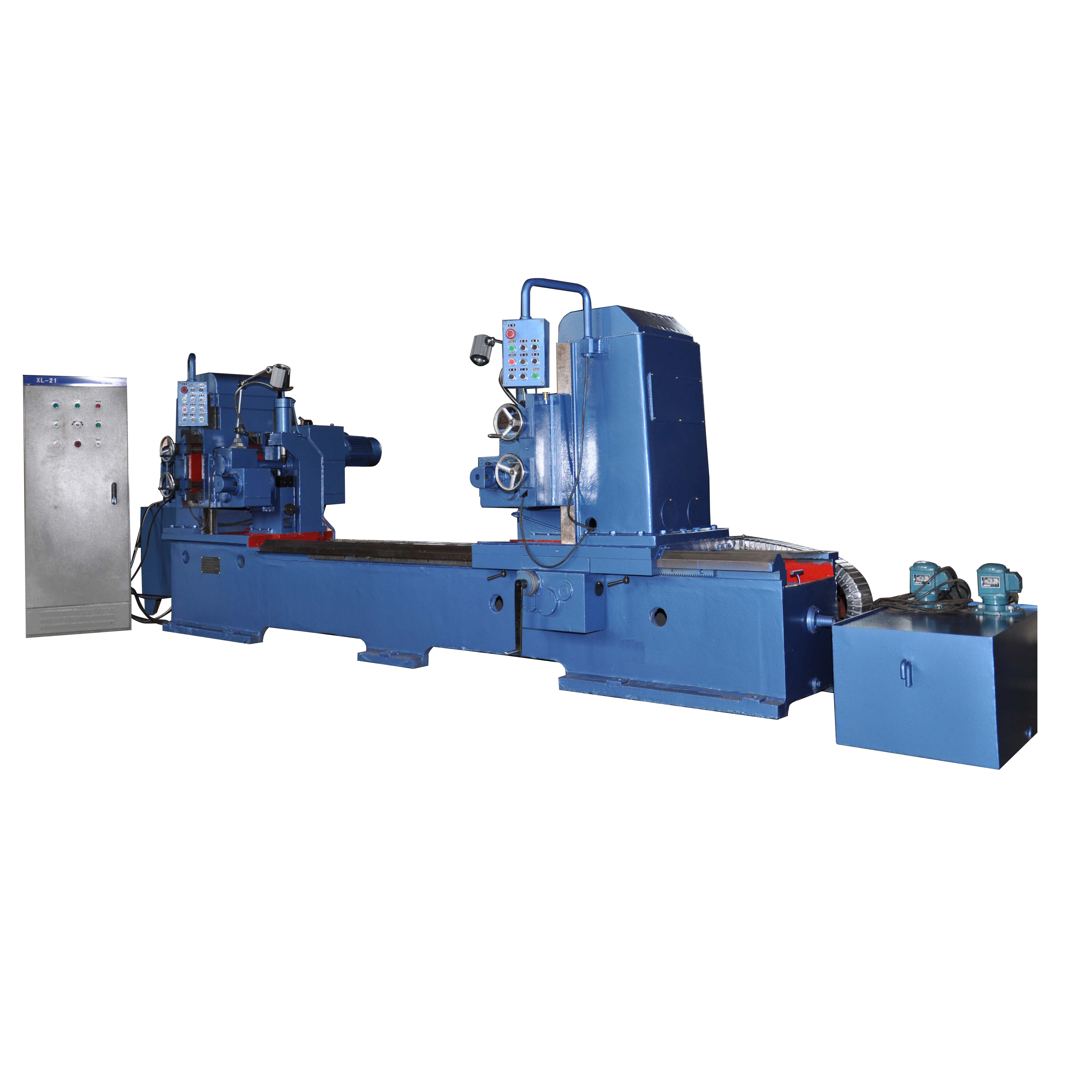

New Design Accuracy Mining Conveyor Roller Making Machine Steel Shaft Solid Bar 2 Heads Automatic H Type Milling Flat Slot Machine
1. Used for the synchronous processing for milling flat at both ends of the roller. 2. Four sets of milling devices work simultaneously to guarantee the symmetry of the flat and groove of the roller shaft. 3. The clamping, positioning and tool feeding are driven by hydraulic system, which enables the tool feeding smooth and the processing is highly precise

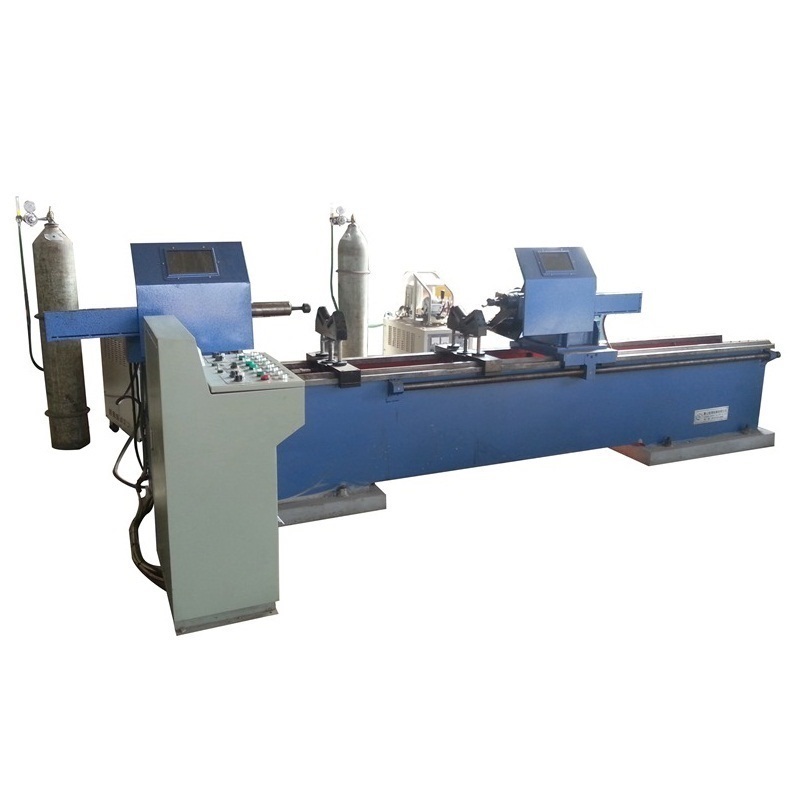

PLC Control Mining Duty Conveyor Roller Auto Making Machine Steel Conveyor Both Ends Welding Bearing Housing to Pipe Machine
