Product Description

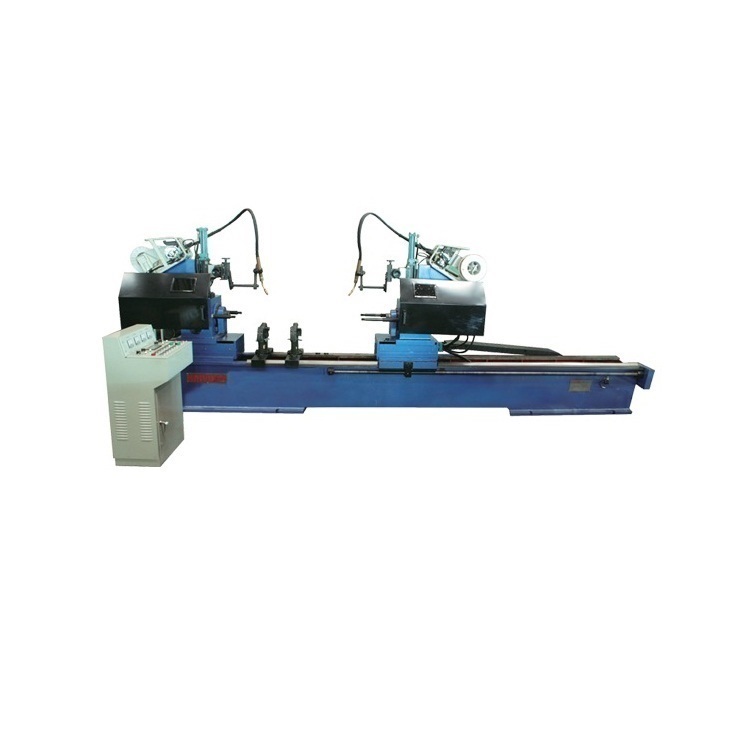

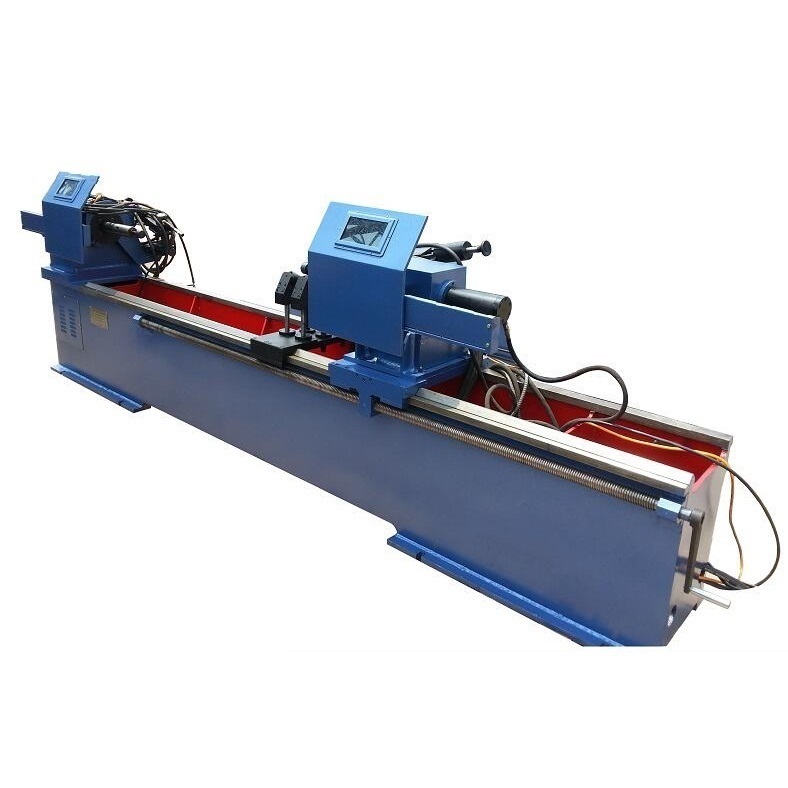

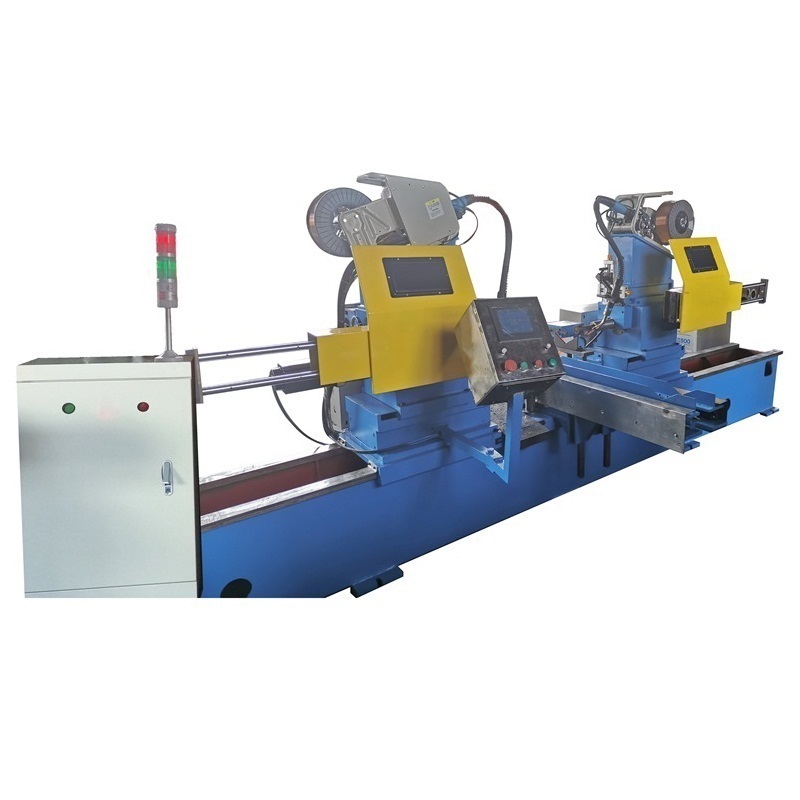

PLC Control Mining Duty Conveyor Roller Auto Making Machine Steel Conveyor Both Ends Welding Bearing Housing to Pipe Machine
FEATURES AT A GLANCE
1. High speed welding, 2000 pcs/8h.
2. Used for the inside and outside girth weld of the roller bearing block.
3.Two sets of CO2/MAG welding devices are equipped for the simultaneous girth welding at both ends.
4.The workpiece can be positioned, fixed, welded and repositioned automatically.
PRODUCT OVERVIEW
This product Weld both ends simultaneously, completed in one go, with a welding speed of up to 2000mm/min, Compared to traditional models, the welding speed (800-900mm/min) has been doubled, making it an ideal equipment for mass production.The use of programmable controllers and touch screen control has improved production efficiency and welding quality.The left and right spindle boxes are synchronously adjusted based on the center, equipped with a blocking mechanism that manually and automatically combines the lifting and lowering mechanisms. Except for loading and unloading, all other processes are automatically completed, with simple and reliable adjustment and high degree of automation.
This machine is automatic steel pipe welding machine. It can feed material,clamp and weld steel pipe automatically with high processing accuracy . This machine use hydraulic clamp device and PLC numerical control feeding mechanism,time control circuit, automatic tool feeding and welding, automatic quick tool retracting with precise repeat orientation. The workpiece keep static and welder revolve and process which can highly improve welding speed.
1. Pneumatic controlled crease bar to fold the fabric exactly. Pedal controls machine runing
2. Suitable for wide range of fabric
3. Alignment tool for fabric joining
PRODUCT SPECIFICATION
| specification | HA-2×350KRHGN |
HA-2×500KRHGN |
| length of weldable workpiece |
200~2600 mm |
200~2600 mm |
| diameter of weldable workpiece |
Φ76~Φ219 mm |
Φ76~Φ219 mm |
| input power supply |
three phase 380V50Hz |
three phase 380V50Hz |
| rated load duration rate |
60% |
100% |
| rated output current |
350 A |
500 A |
| applicable welding wire |
Φ0.8~Φ1.2 mm |
Φ1.2~Φ1.6 mm |
| shielding gas flow |
10~25 L/min |
10~25 L/min |
| speed of spindle |
1~10 rpm |
1~10 rpm |
| stroke of clamping cylinder |
200 mm |
200 mm |
| adjustable angle left and right of welding gun |
±20° |
±20° |
| adjustable angle backward of welding gun (pass the spindle center) |
0-17° |
0-17° |
| machine size | 4600×800×1500 mm |
4600×850×1600 mm |
| machine weight | 3500kg | 4000kg |
| operation environment (indoor) |
temperature: -5℃—40℃； average relative humidity less than 80% |
temperature: -5℃—40℃； average relative humidity less than 80% |

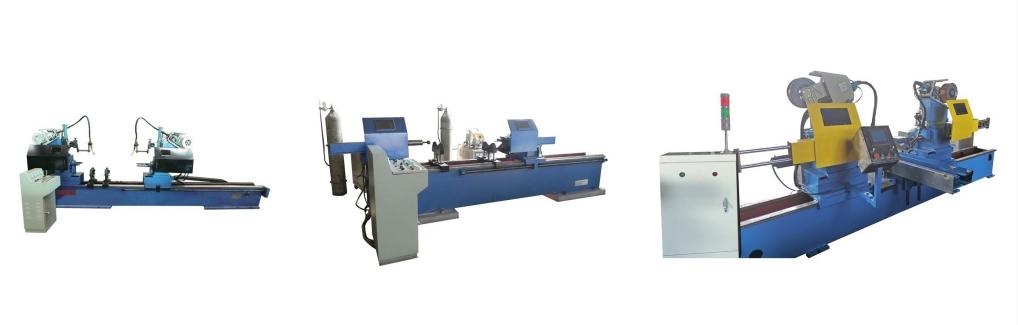

PRODUCT CONFIGURATION

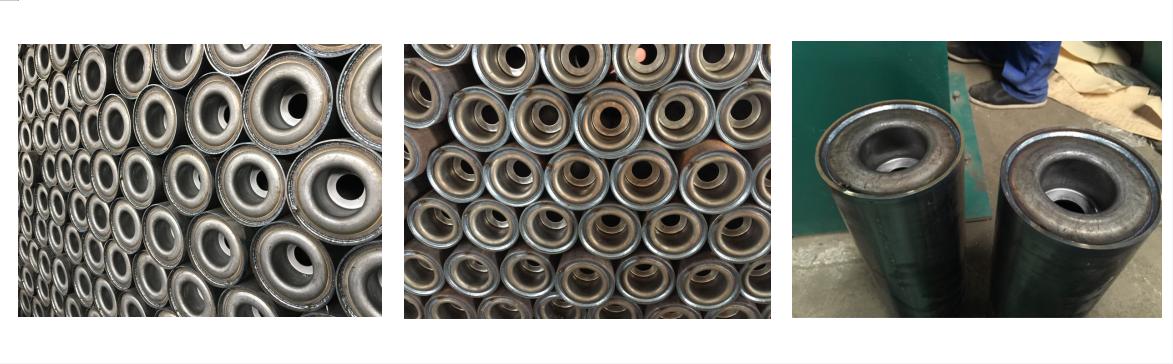

FINISHED ROLLER HEADS

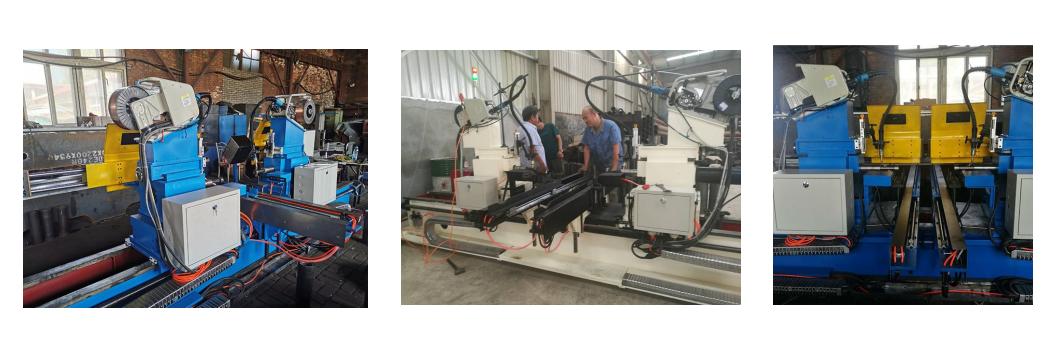

FACTORY SHOW
CE CERTIFICATE/ EU STANDARDS
CUSTOMER VISITING FACTORY & CHECKING QUALITY
PACKAGE & SHIPPING
GOOD COMMENT FROM CUSTOMERS
SALES & SERVICE NETWORK
FAQ
Q1：How can I know machine is that I need?
A1：Contact our sales, add whatsapp 008618226192162 or email haconveyor@gmail.com for machine detail and your requirement.
Q2 : Can you install machine or test machine in customer site?
A2 : Yes, we can go abroad to customer's site to install and test machine, and train their workers to use machine. or we can guide online.
Q3 : Do you provide spare parts?
A3 : Yes, we provide 2 years spare parts for free.
Q4 : What trade terms do you support?
A4 : We accept FOB China port, CIF, EXW.
Q5 : What payment terms do you accept?
A5 : We accept transfer by T/T, L/C at sight.
Q6 : What about your delivery time?
A6 : single machine is 15-20 nature days, machine line is not more than 60 nature days.
