Product Description

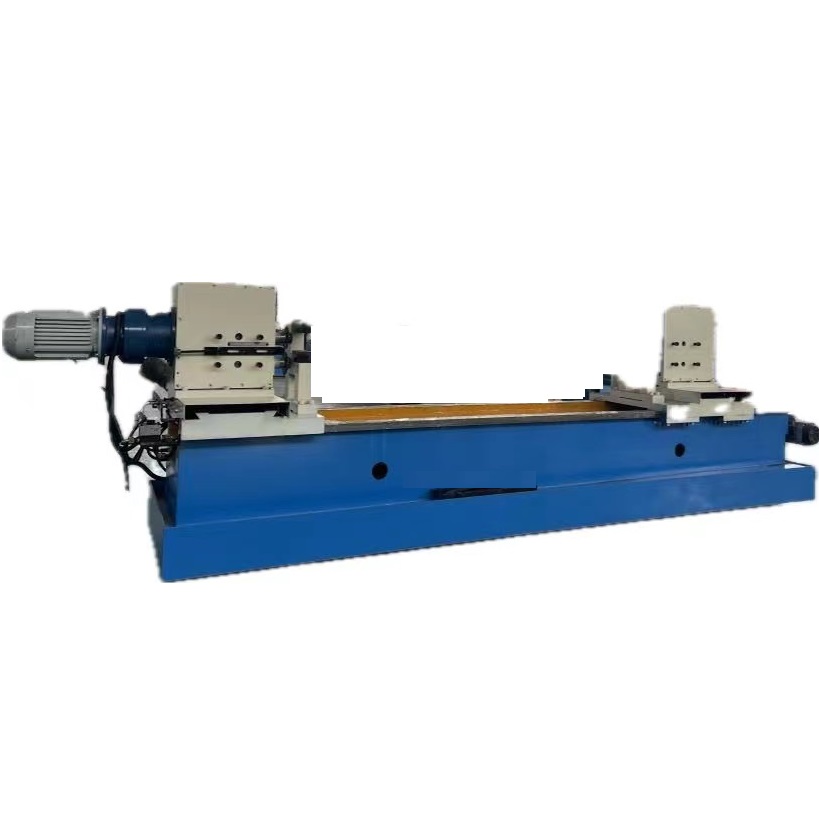

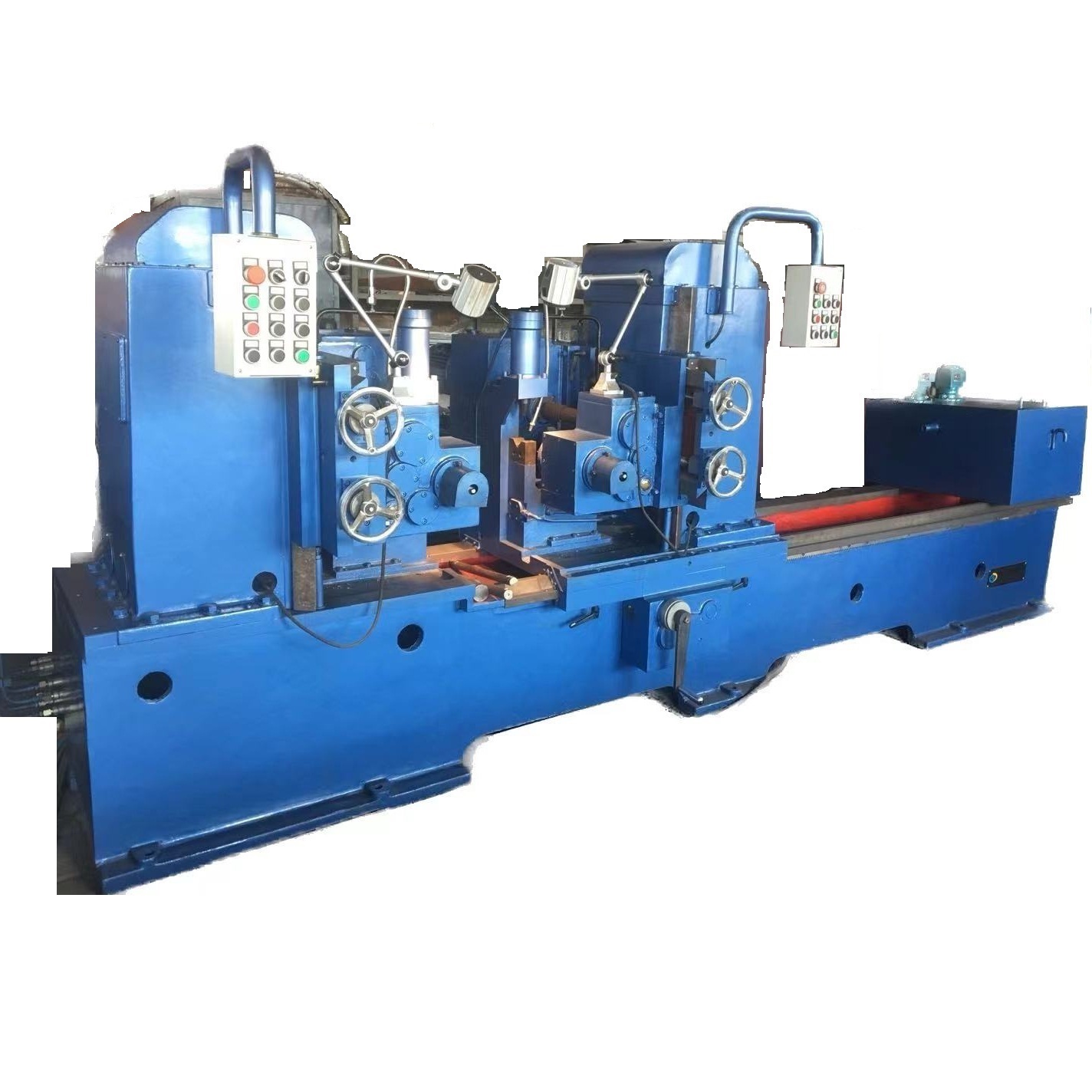

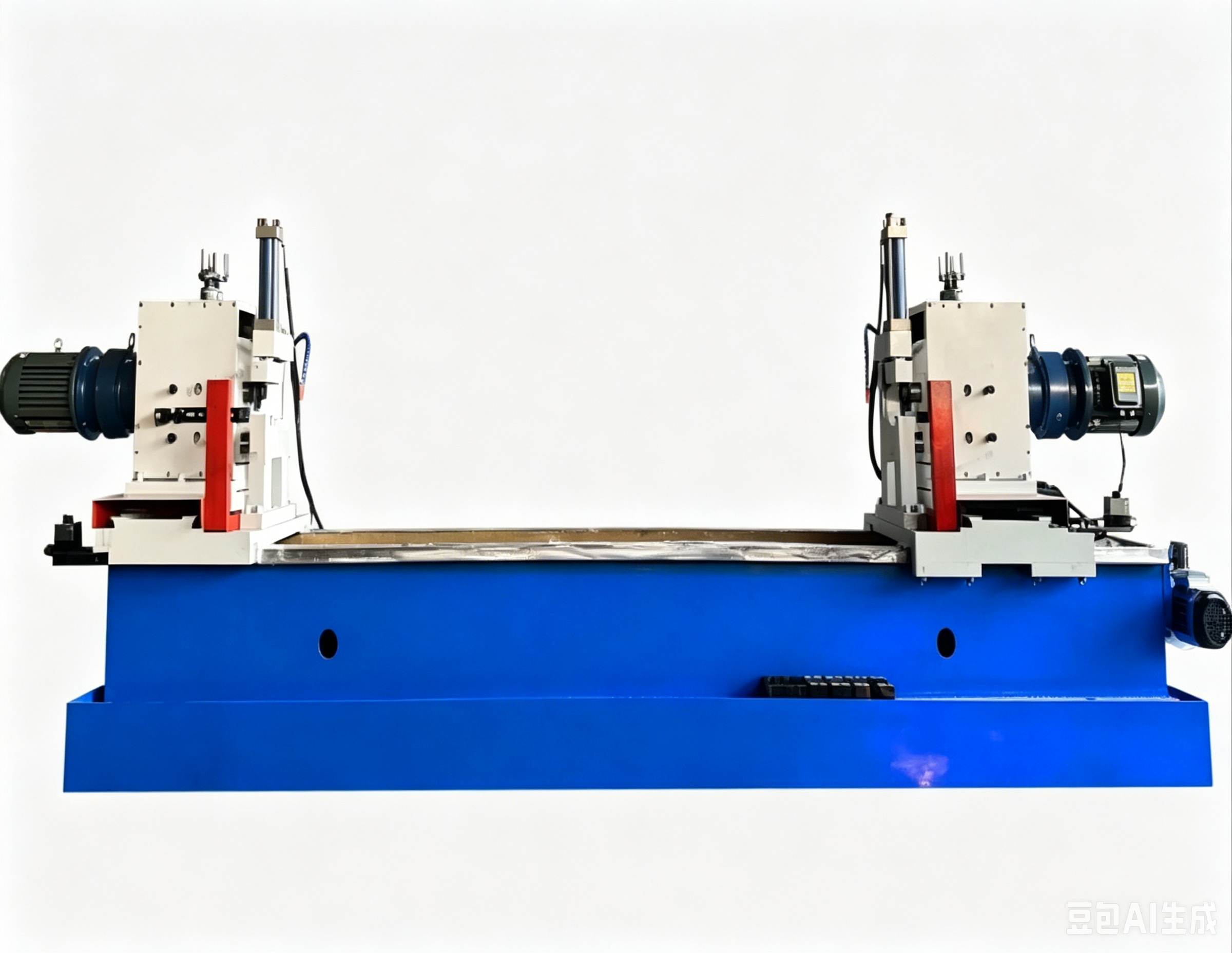

New Design Accuracy Mining Conveyor Roller Making Machine Steel Shaft 2 Heads Automatic H Type Milling Flat Slot Machine
FEATURES AT A GLANCE
1. Used for the synchronous processing for the flat and groove at both ends of the roller.
2. Four sets of milling devices work simultaneously to guarantee the symmetry of the flat and groove of the roller shaft.
3. The clamping, positioning and tool feeding are driven by hydraulic system, which enables the tool feeding smooth and the processing is highly precise

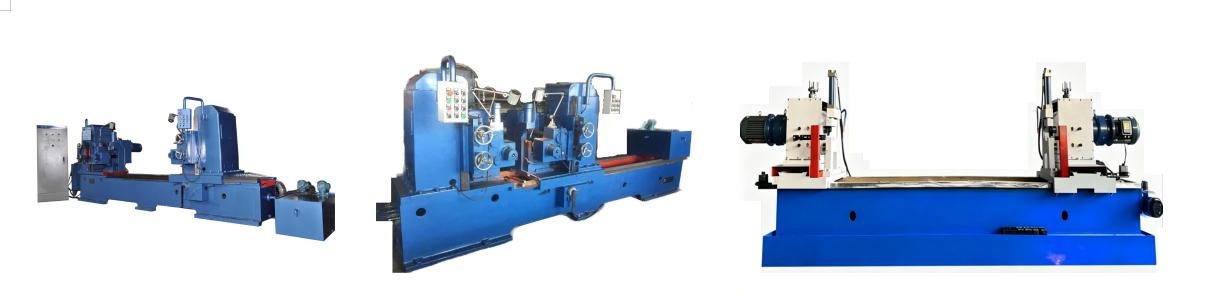

PRODUCT OVERVIEW
This machine is an automatic equipment which could process the two ends of the belt conveyor roller shaft by a single clamping. Process shaft size range, dia 20-60mm, length 200-2700mm.The electronic control system applied imported programmable controller (PLC) as the center for process control, which with high degree of automation, high efficiency and reliability. It’s suitable for volume production of roller shaft.
When making a mining heavy duty steel conveyor roller, it is necessary to make a flat slot. Because it can clamp the seals and bearing into bearing housing tightly, which guarantee the roller can rotate fluently. Seals and bearing will loose without slot during high speed rotating. This is machine having PLC, totally automatic, easy operation, safely, high efficiency and low cost.It is suitable in difficuly sitaution, and good for roller factory making big quantity production.
1 . This product is an automated specialized equipment for processing the spring grooves at both ends of the roller shaft of a belt conveyor.
2 . The machine adopts Taiwan's Delta programmable logic controller (PLC) as the core, with advanced contactless switches as limit switches for program control; By using a CNC motor for cutting, the cutting speed can be adjusted according to the actual situation.
3 . It can have stepless speed regulation, manual discharge of equipment, automatic groove cutting and automatic material dropping, and one person can guard multiple machines, with high work efficiency.
4 . Both ends of the shaft are processed simultaneously, with precise and adjustable groove spacing.
5 . Stable and reliable work, high degree of automation, suitable for batch processing of roller shafts.
PRODUCT SPECIFICATION
| specification | HA36-6×230 |
HA36-6×270 |
| speed for spindle |
500、700、900 r/min |
500、700、900 r/min |
| diameter of roller shaft |
Φ20~Φ60 mm |
Φ20~Φ60 mm |
| length of roller shaft |
200~2300 mm |
200~2700 mm |
| milling width | 6~45 mm |
6~45 mm |
| milling depth | 0~5 mm |
0~5 mm |
| spindle motor |
3 kW×2（set） |
3 kW×2（set） |
| oil pump motor |
4 kW |
4 kW |
| hydraulic system working pressure |
1.5~4 MPa |
1.5~4 MPa |
| hydraulic system flow |
31 L/min |
31 L/min |
| cooling bump motor |
125 W×2 |
125 W×2 |
| machine size | 4050×1300×1600 mm |
4450×1300×1600 mm |
| machine weight | 3500kg | 4000kg |

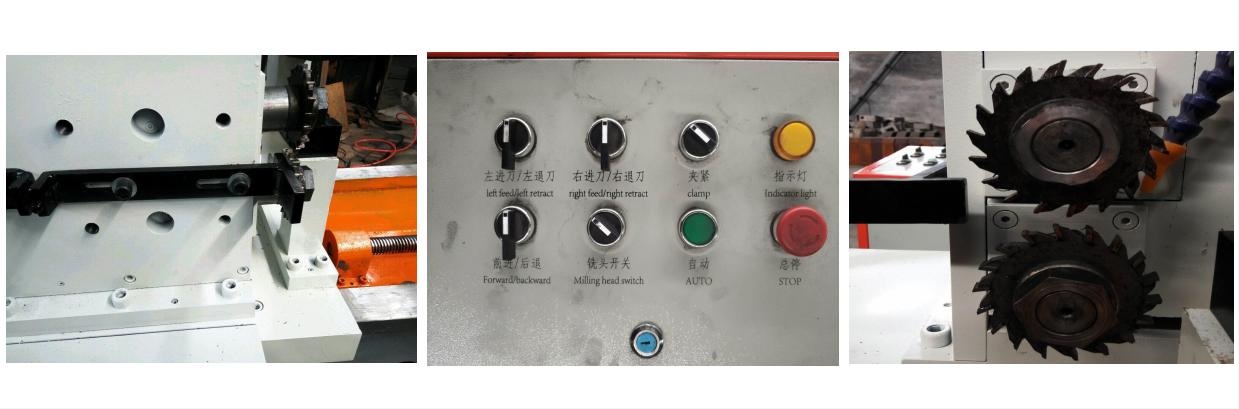

PRODUCT CONFIGURATION

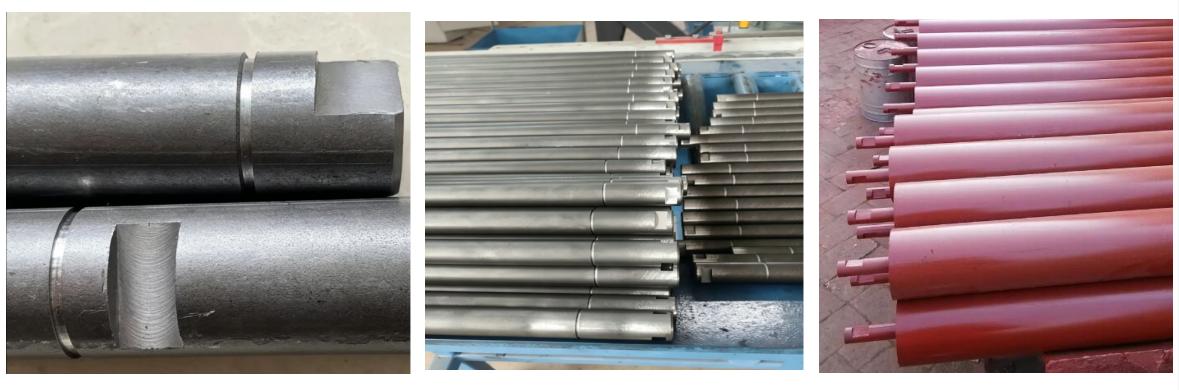

FINISHED SHAFT ENDS
FACTORY SHOW
CE CERTIFICATE/ EU STANDARDS
CUSTOMER VISITING FACTORY & CHECKING QUALITY
PACKAGE & SHIPPING
GOOD COMMENT FROM CUSTOMERS
SALES & SERVICE NETWORK
FAQ
Q1：How can I know machine is that I need?
A1：Contact our sales, add whatsapp 008618226192162 or email haconveyor@gmail.com for machine detail and your requirement.
Q2 : Can you install machine or test machine in customer site?
A2 : Yes, we can go abroad to customer's site to install and test machine, and train their workers to use machine. or we can guide online.
Q3 : Do you provide spare parts?
A3 : Yes, we provide 2 years spare parts for free.
Q4 : What trade terms do you support?
A4 : We accept FOB China port, CIF, EXW.
Q5 : What payment terms do you accept?
A5 : We accept transfer by T/T, L/C at sight.
Q6 : What about your delivery time?
A6 : single machine is 15-20 nature days, machine line is not more than 60 nature days.
New Design Accuracy Mining Conveyor Roller Making Machine Steel Shaft Solid Bar 2 Heads Automatic H Type Milling Flat Slot Machine
1. Used for the synchronous processing for milling flat at both ends of the roller. 2. Four sets of milling devices work simultaneously to guarantee the symmetry of the flat and groove of the roller shaft. 3. The clamping, positioning and tool feeding are driven by hydraulic system, which enables the tool feeding smooth and the processing is highly precise
