Product Description

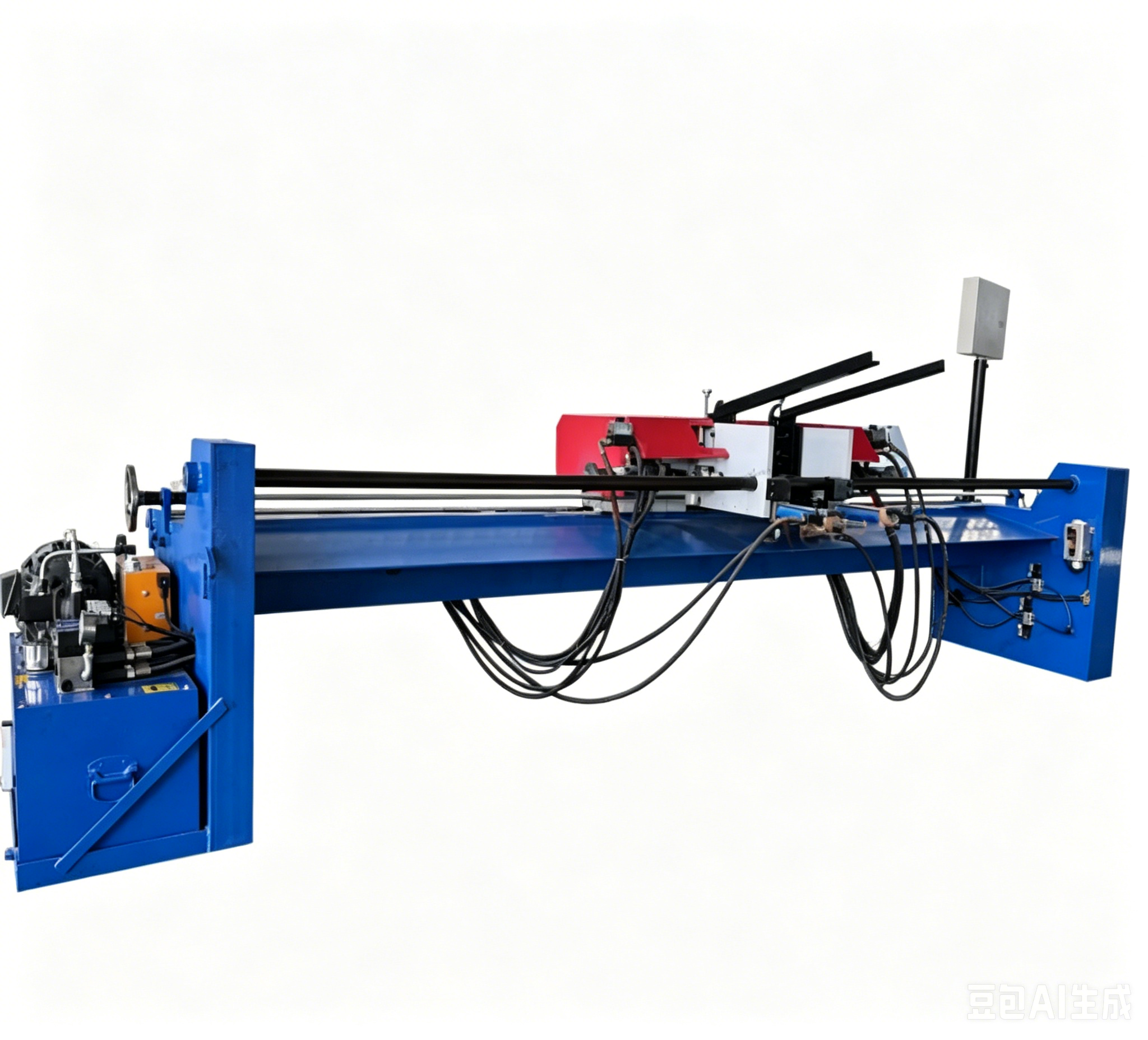

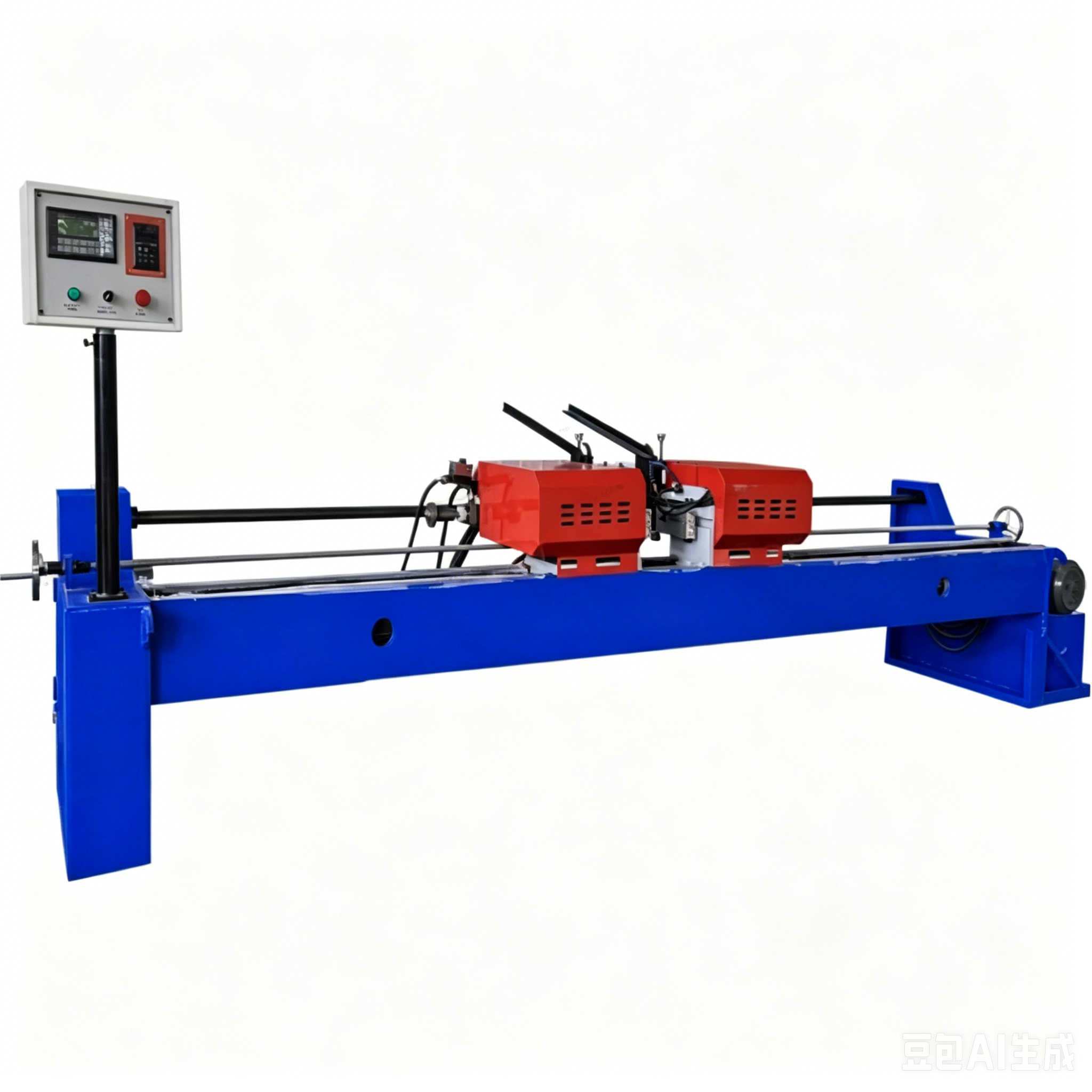

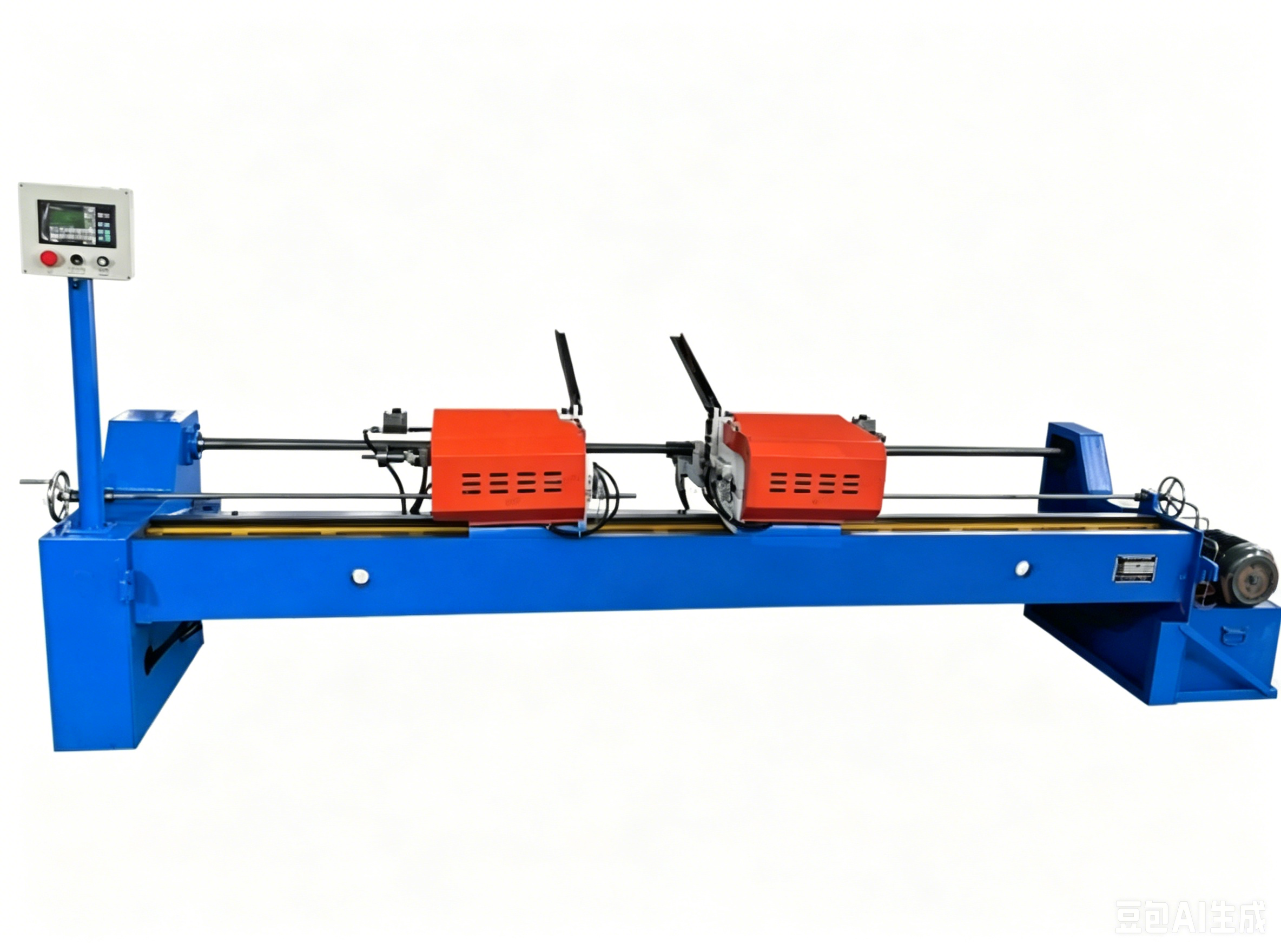

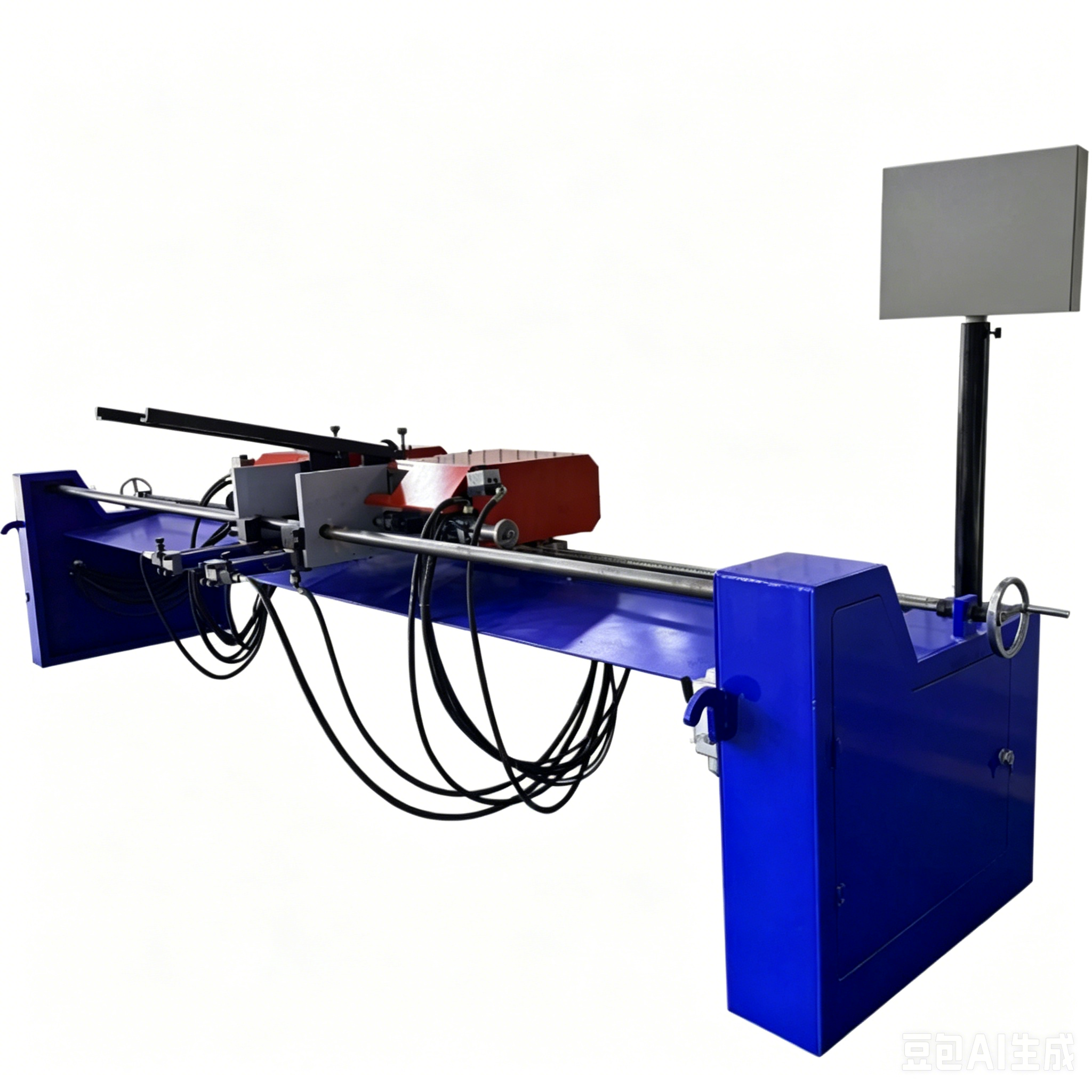

HAconveyor CE 40mm Shaft Both Ends Auto Milling Center Hole Flaten Faces Chamering Edges Deburring 5.5kW Machine
FEATURES AT A GLANCE
1.This multi-purpose machine is used for steel shaft/solid bar ends face flaten, center-hole drilling and beveling deburring in sequence synchronously.
2.The V-shaped positioner and the hydraulic clamping device guarantees the positioning accuracy.
3.The hydraulic station uses sandwich valve system, which has a quick and reliable movement.
4.Stepless adjustable speed.
PRODUCT OVERVIEW
The product is a special equipment for centering chamfering on both ends of the belt conveyor roller milling face.This equipment is development after pipe chamfering cutting machine, hole turning machine and welding machine for conveyor industries. The machine adops a v-shaped block, using cylindrical positioning, hydraulic clamping, double end processing at the same time, and completes axial positioning, surfacing cutting, center hole processing and shaft end chamfering process. It’s positioning accurately and clamping reliable, so it has the character of easy handling and operation, good precision, high production efficiency, etc.
The control system adopts Toshiba programmable controller (PC) and domestic advanced non-contact proximity switch, and the superposition valve system adopts domestic advanced hydraulic, so it’s with quick and accurate action,stable and reliable performance, low failure rate, to further ensure the roll shaft end face, center hole machining to work with high quality and high efficiency.
Shaft center hole drilling and both ends flaten machine can process shaft dia 20-50mm, shaft length range is 200-2300mm. It is totally automatically. Operation is easy and high efficiency & low cost. it is safe and save labour cost in difficult environment. It is very suitable for factory big quantity production.
PRODUCT SPECIFICATION
| specification | HA-4.5×230 |
HA-4.5×270 |
| central height of machine |
900mm | 900mm |
| feeding speed | hydraulic sleepless adjustable |
hydraulic sleepless adjustable |
| diameter of workpiece |
Φ20~Φ50 mm |
Φ20~Φ50 mm |
| length of workpiece |
200~2300 mm |
200~2700 mm |
| milling spindle speed |
635 r/min |
635 r/min |
| drilling spindle speed |
730 r/min |
730 r/min |
| hydraulic slide stroke |
220 mm |
220 mm |
| machining precision (alignment) |
IT9 |
IT9 |
| spindle motor |
3 kW×2（set） |
3 kW×2（set） |
| oil pump motor |
4 kW |
4 kW |
| machine size | 4050×930×1400 mm |
4450×930×1400 mm |
| machine weight | 2500kg | 3000kg |

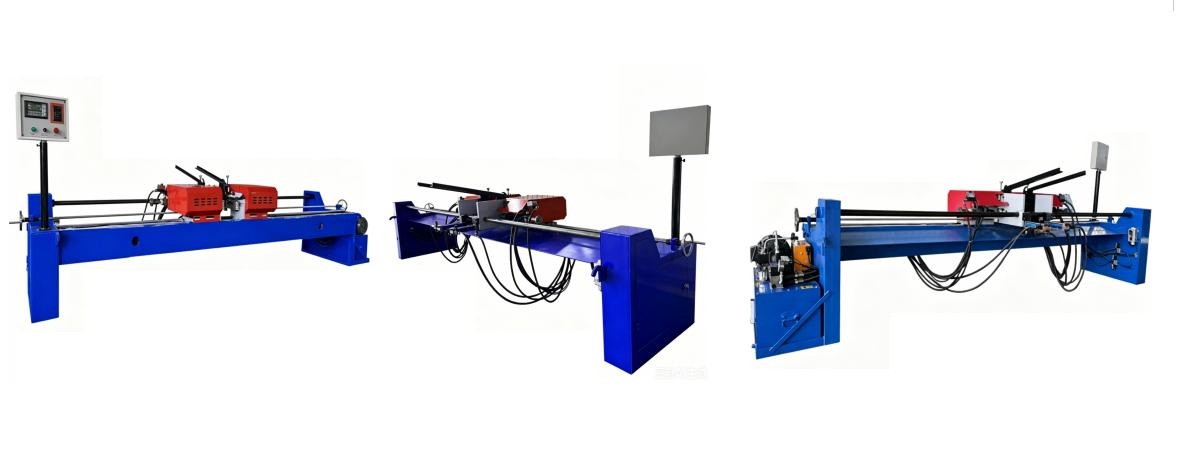

PRODUCT CONFIGURATION

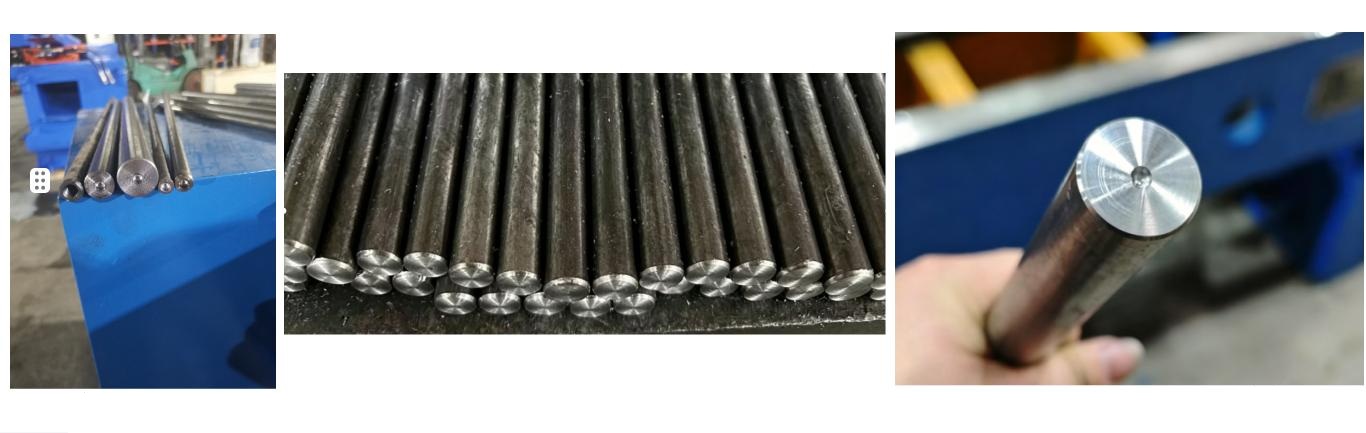

FINISHED SHAFT ENDS

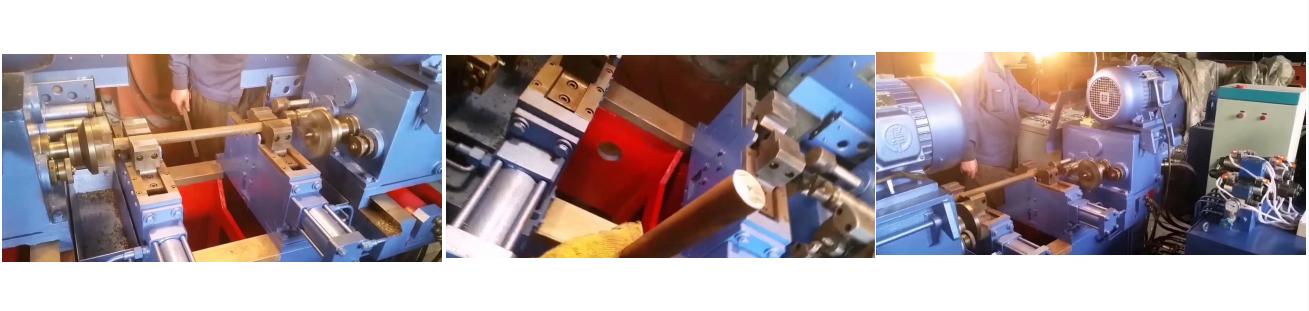

FACTORY SHOW
CE CERTIFICATE/ EU STANDARDS
CUSTOMER VISITING FACTORY & CHECKING QUALITY
PACKAGE & SHIPPING
GOOD COMMENT FROM CUSTOMERS
SALES & SERVICE NETWORK
FAQ
Q1：How can I know machine is that I need?
A1：Contact our sales, add whatsapp 008618226192162 or email haconveyor@gmail.com for machine detail and your requirement.
Q2 : Can you install machine or test machine in customer site?
A2 : Yes, we can go abroad to customer's site to install and test machine, and train their workers to use machine. or we can guide online.
Q3 : Do you provide spare parts?
A3 : Yes, we provide 2 years spare parts for free.
Q4 : What trade terms do you support?
A4 : We accept FOB China port, CIF, EXW.
Q5 : What payment terms do you accept?
A5 : We accept transfer by T/T, L/C at sight.
Q6 : What about your delivery time?
A6 : single machine is 15-20 nature days, machine line is not more than 60 nature days.
HAconveyor CE 40mm Shaft Both Ends Auto Milling Center Hole Flaten Faces Chamering Edges Deburring 5.5kW Machine
1.This multi-purpose machine is used for steel shaft/solid bar ends face flaten, center-hole drilling and beveling deburring in sequence synchronously. 2.The V-shaped positioner and the hydraulic clamping device guarantees the positioning accuracy. 3.The hydraulic station uses sandwich valve system, which has a quick and reliable movement. 4.Stepless adjustable speed.
Related Products

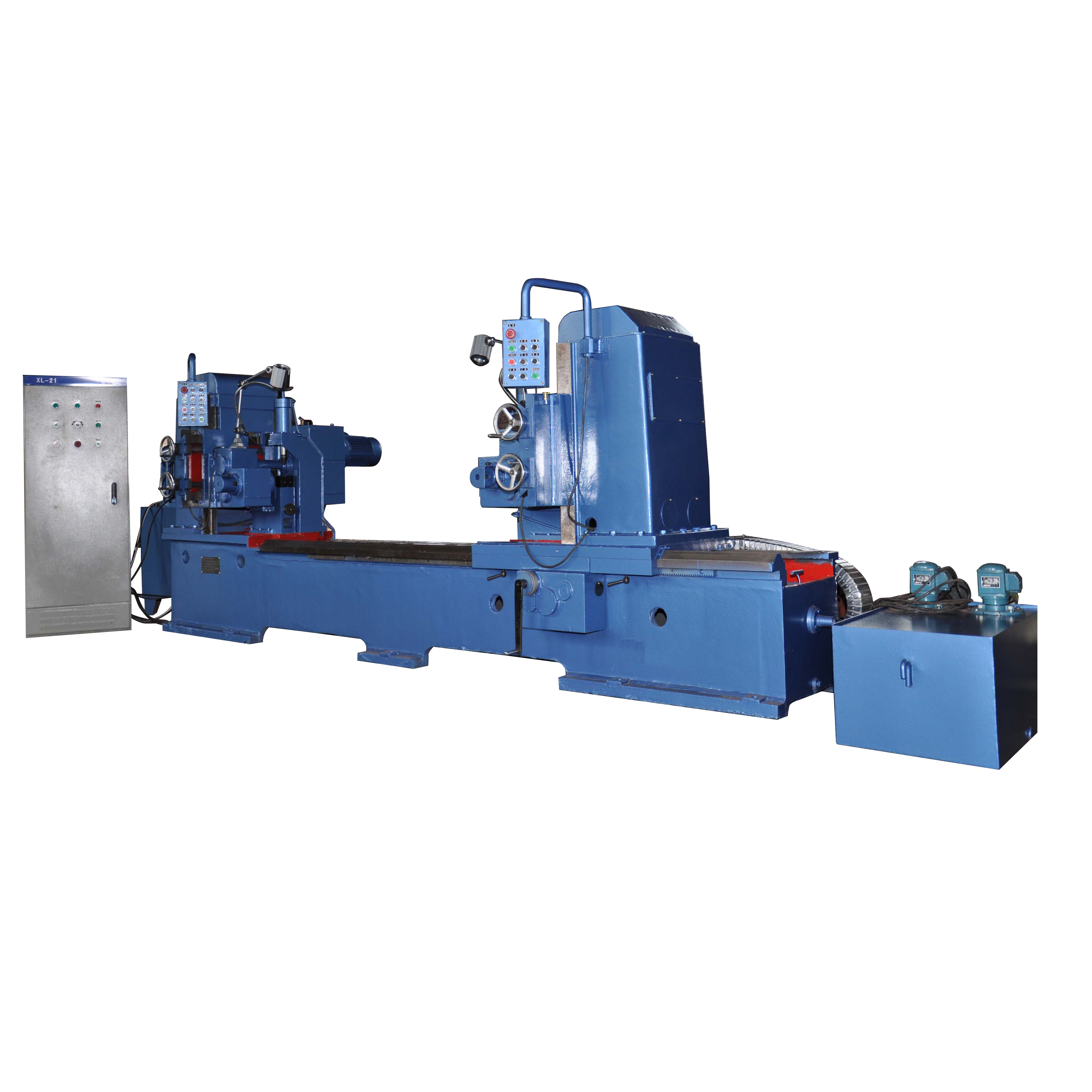

New Design Accuracy Mining Conveyor Roller Making Machine Steel Shaft Solid Bar 2 Heads Automatic H Type Milling Flat Slot Machine
1. Used for the synchronous processing for milling flat at both ends of the roller. 2. Four sets of milling devices work simultaneously to guarantee the symmetry of the flat and groove of the roller shaft. 3. The clamping, positioning and tool feeding are driven by hydraulic system, which enables the tool feeding smooth and the processing is highly precise

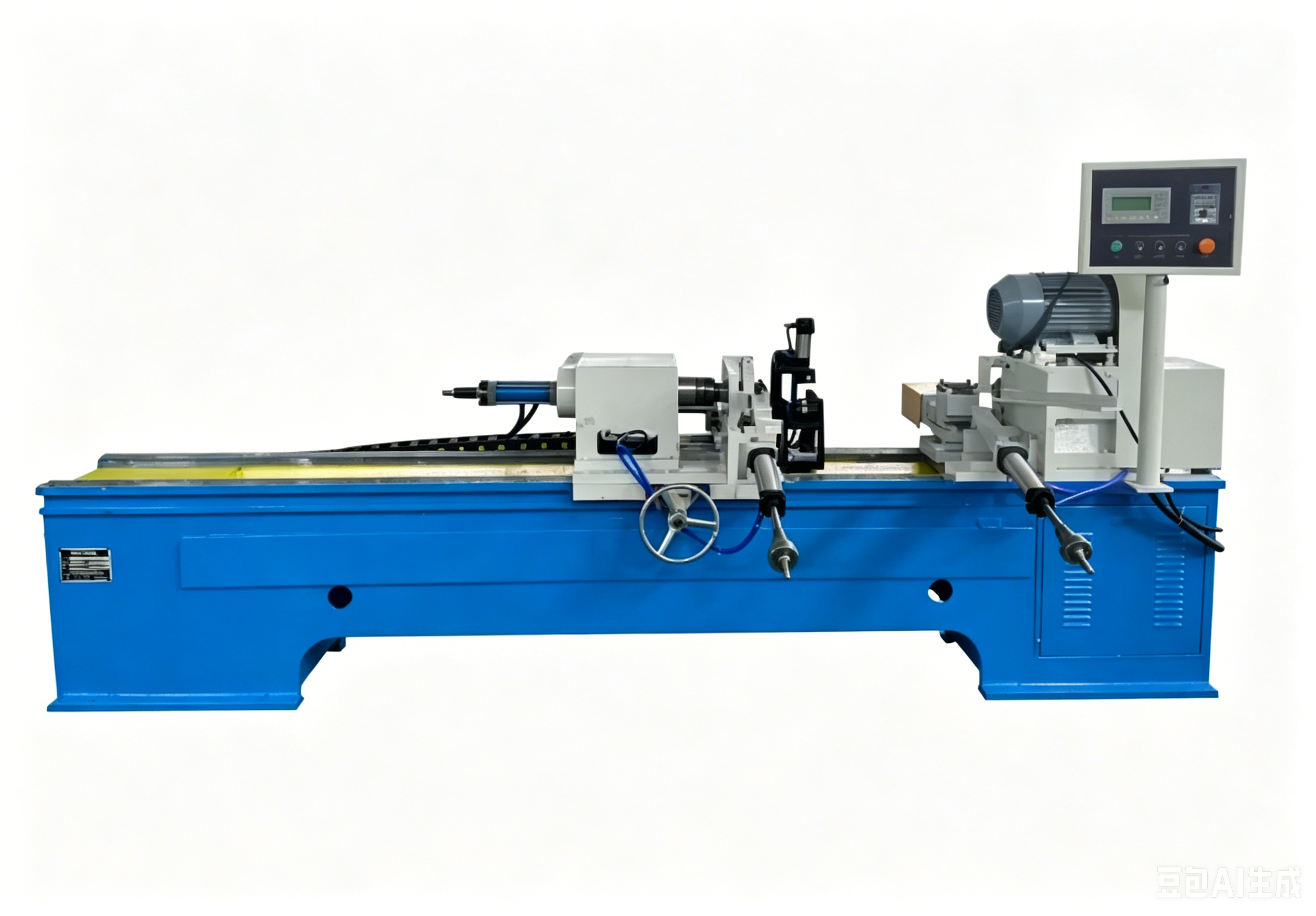

PLC Mining Conveyor Roller Making Machine Steel Shaft Bar 2 Ends Snap Ring Circlip Auto Grooving Machine
* The machine only uses the domestic advanced superposition valve hydraulic system to realize the fast forward and fast backward of feed speed,. * It can be stepless speed regulation, less auxiliary working hours and high work efficiency. * It can process double snap spring groove and single snap spring circlip groove of shaft head, and both ends can be processed at the same time.

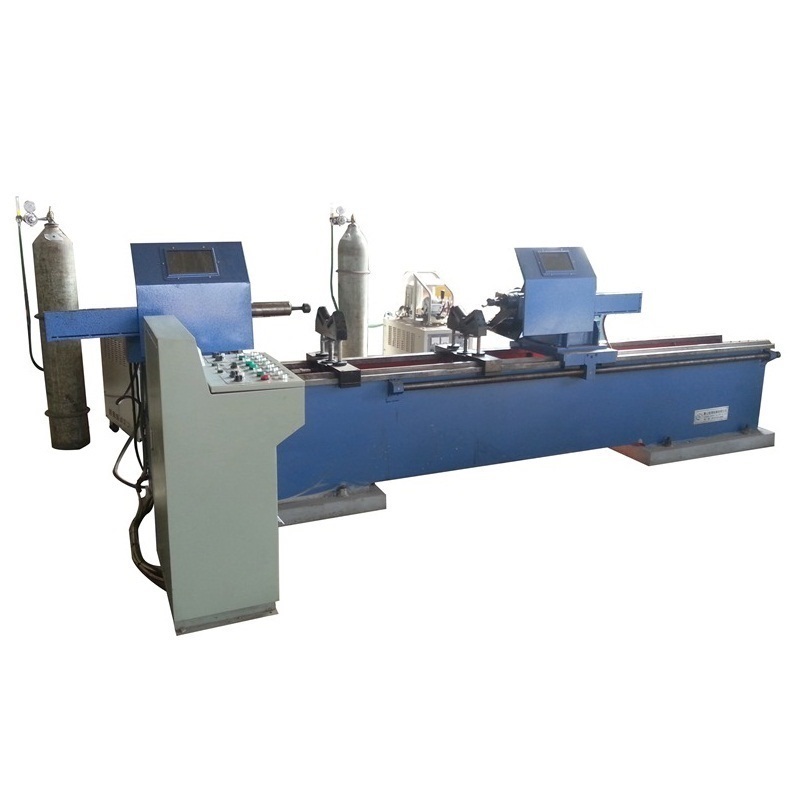

PLC Control Mining Duty Conveyor Roller Auto Making Machine Steel Conveyor Both Ends Welding Bearing Housing to Pipe Machine
