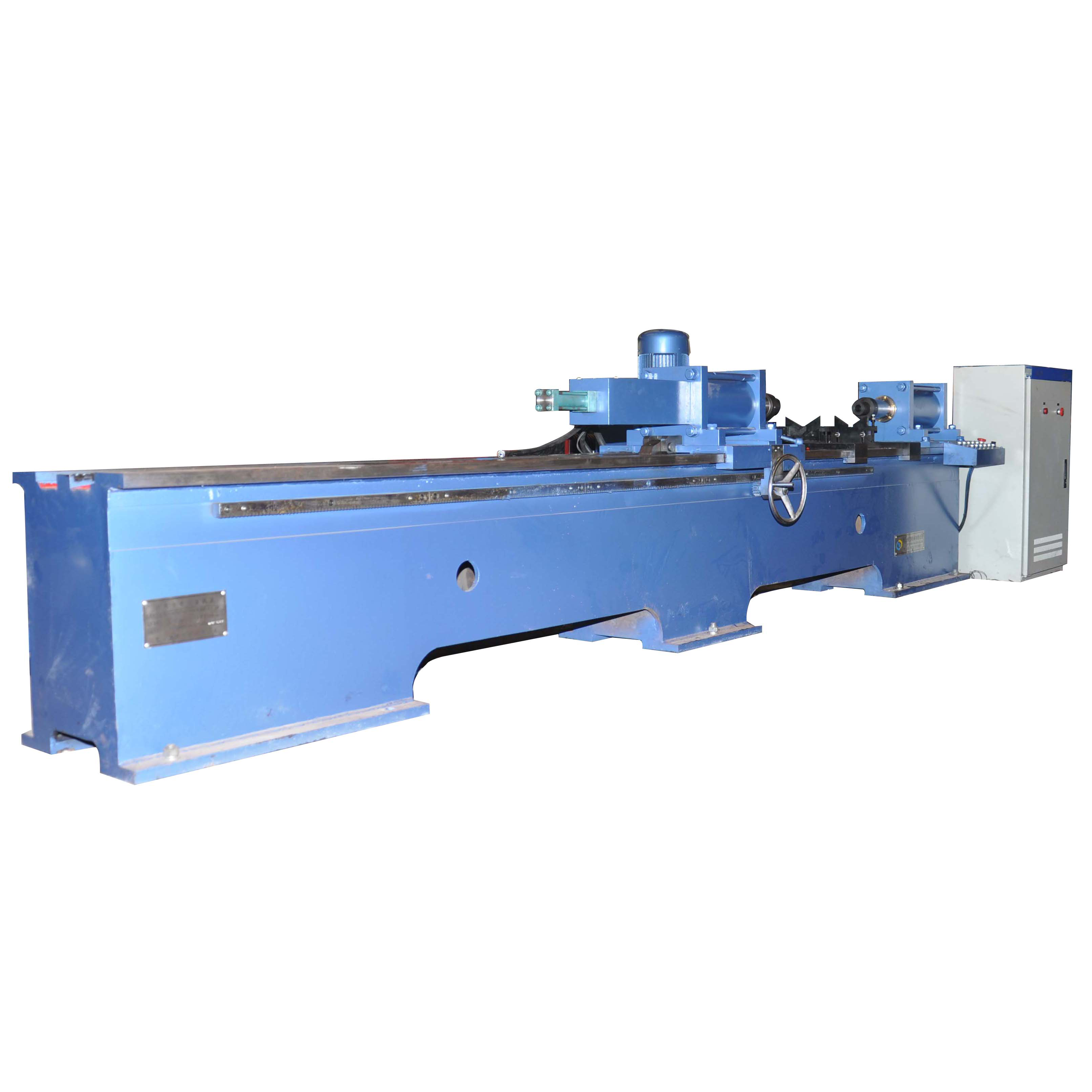

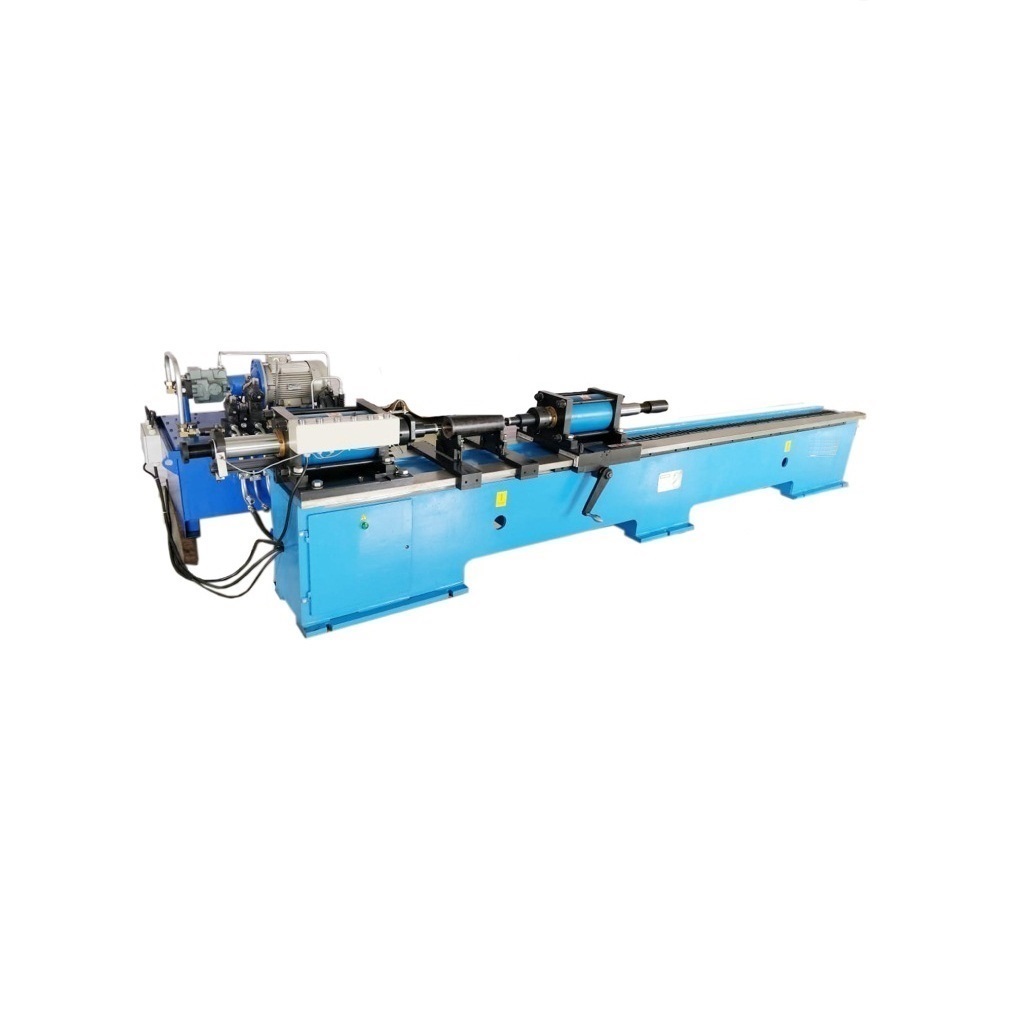

Dia 219 Conveyor Roller Making Machine Conveyor Roller Automatic Assembly Press Mounting Seals Bearing Base Machine

FEATURES AT A GLANCE

* Roller Press Machine used for the press assembly of the stamping bearing block, cast-iron bearing block, sealing and dustproof cap in sequence.
* The two self-stoping pressing device can press assemble the rollers without shaft shoulder concentrically.
* A complete set of tool heads is equipped to fit for the assembly of all kinds of rollers, which is widely applicable

PORDUCT OVERVIEW

This product is a belt conveyor roller automatic assembly equipment which with full hydraulic pressure, it’s applicable to the current domestic production of various kinds roller’s installation. pipe dia range 76-219mm, pipe length range 200-2600mm.

This assembly machine is high efficiency and low cost.It can save much labour cost and is very safe in high temperature working environment. It can finish 1200 pcs roller pressing in 8 hours, whcih is very useful in big quantity production.This machine can press different material pipes, such iron pipe, steel pipe, HDPE pipe, stainless steel pipe etc.

This product is a fully hydraulic pressure semi automatic special equipment for the assembly of the belt conveyor roller. It is suitable for the assembly of various domestic rollers(cast bearing housing, stamping and welding bearing housing) at present. When it’s working, it’s artificial feeding and double head press. The iron bearing seat, bearing, seal and dust cover can be loaded on a single machine for many times. The machine is reliable, practical and efficient, and is suitable for the assembly and production of large mass rollers.

1.The machine adopts hydraulic pressing and is a semi-automatic specialized equipment for assembling the support rollers of belt conveyors, suitable for the assembly of various (cast iron or stamped bearing seats) support rollers currently produced domestically and internationally.
2. The length and diameter of the press roller can be adjusted within a certain range.
3 . Using manual feeding and double head pressing to significantly improve work efficiency.
4 . 6 cylinders complete the pile pressing process, and the adjustment of the press-fitting depth of the bearing is simple and convenient.
5 . 800-1200 pcs/8h， φ89*350*3.0
6 . It is economical and practical, and is suitable for the assembly and production of batch idlers.

PRODUCT SPECIFICATION

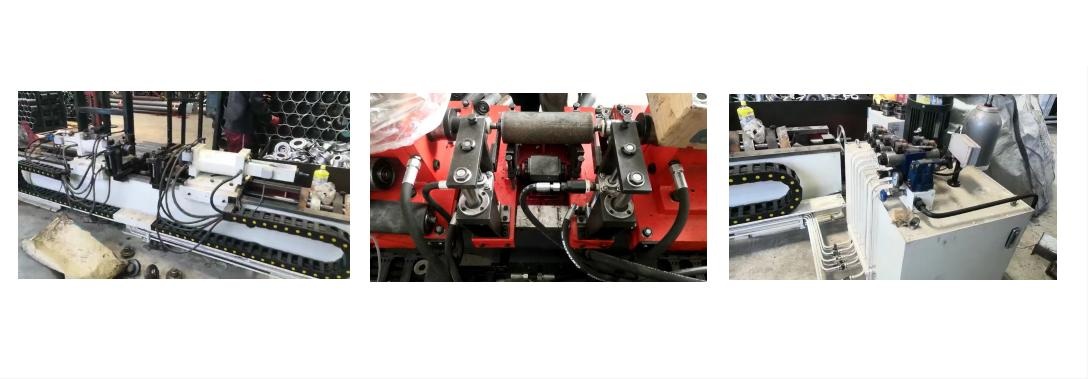

PRODUCTION CONFIGURATION

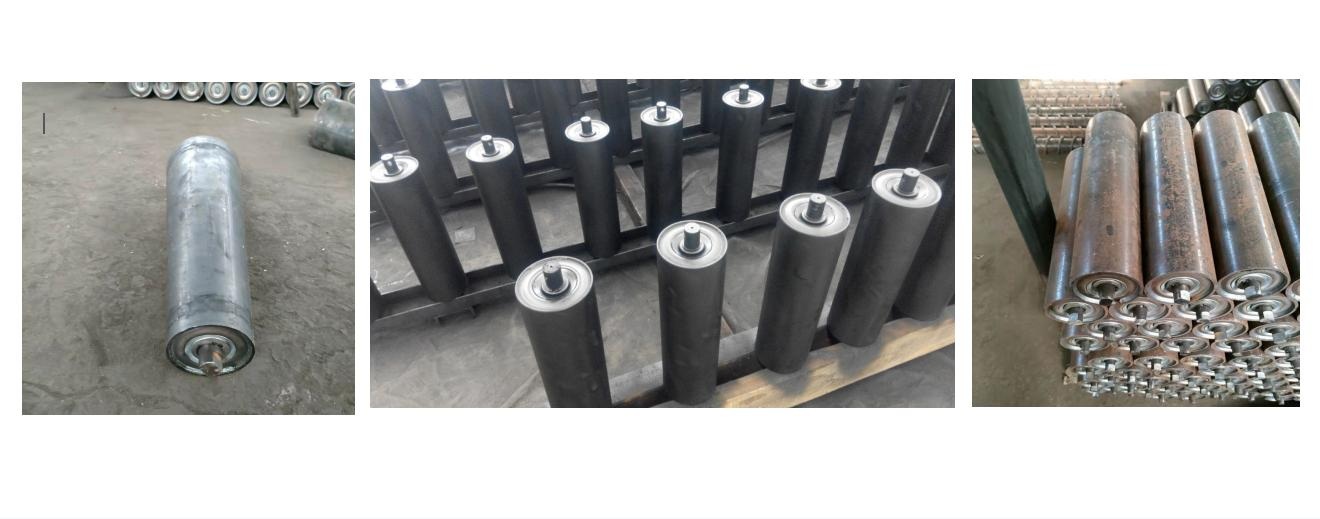

FINISHED ROLLER HEADS

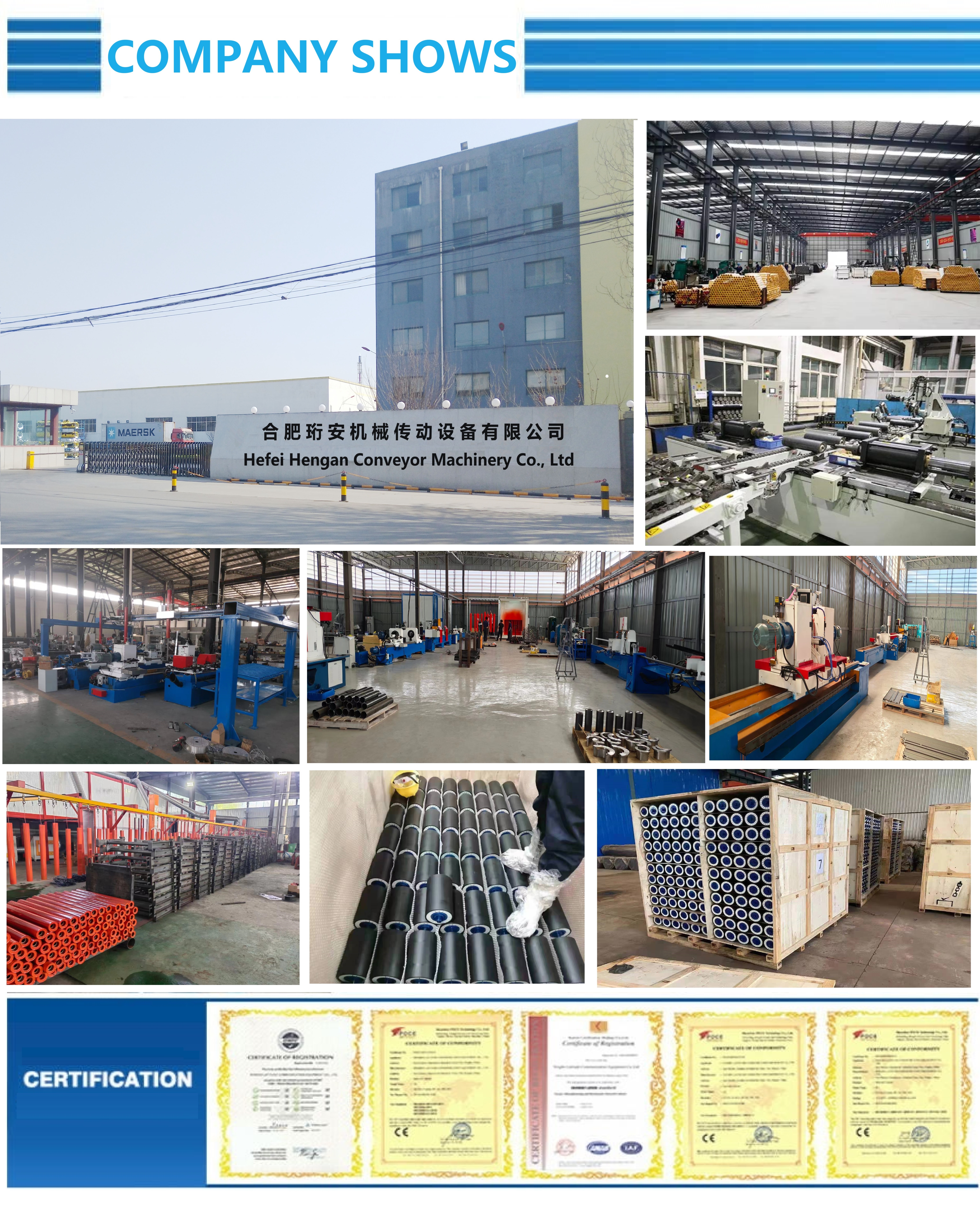

FACTORY SHOW

CE CERTIFICATE/ EU STANDARDS

CUSTOMER VISITING FACTORY & CHECKING QUALITY

PACKAGE & SHIPPING

GOOD COMMENT FROM CUSTOMERS

SALES & SERVICE NETWORK

FAQ

Q1：How can I know machine is that I need?
A1：Contact our sales, add whatsapp 008618226192162 or email haconveyor@gmail.com for machine detail and your requirement.

Q2 : Can you install machine or test machine in customer site?
A2 : Yes, we can go abroad to customer's site to install and test machine, and train their workers to use machine. or we can guide online.


Q3 : Do you provide spare parts?
A3 : Yes, we provide 2 years spare parts for free.


Q4 : What trade terms do you support?
A4 : We accept FOB China port, CIF, EXW.


Q5 : What payment terms do you accept?
A5 : We accept transfer by T/T, L/C at sight.

Q6 : What about your delivery time?
A6 : single machine is 15-20 nature days, machine line is not more than 60 nature days
