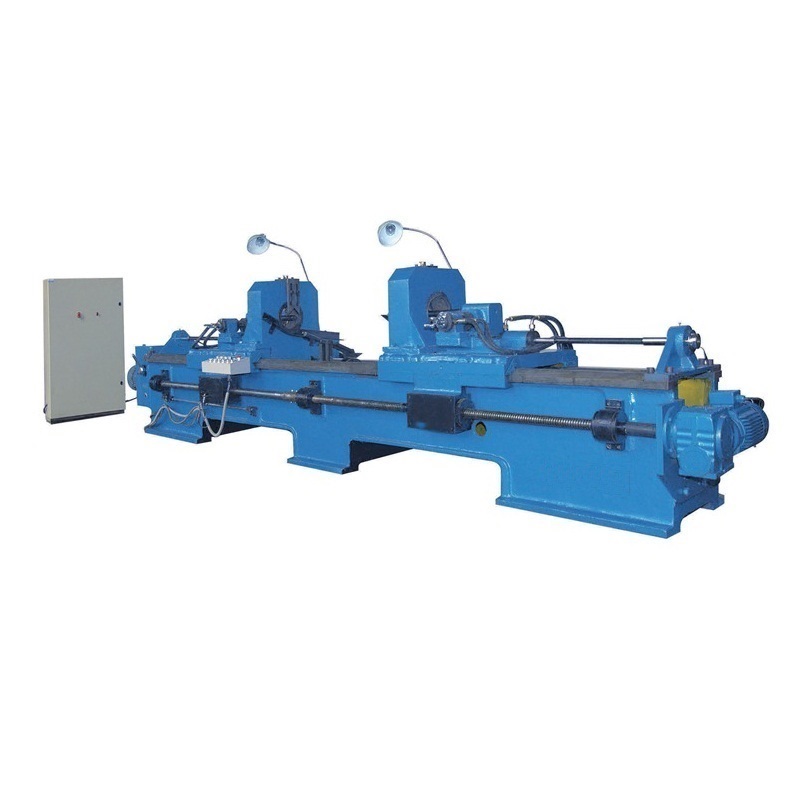

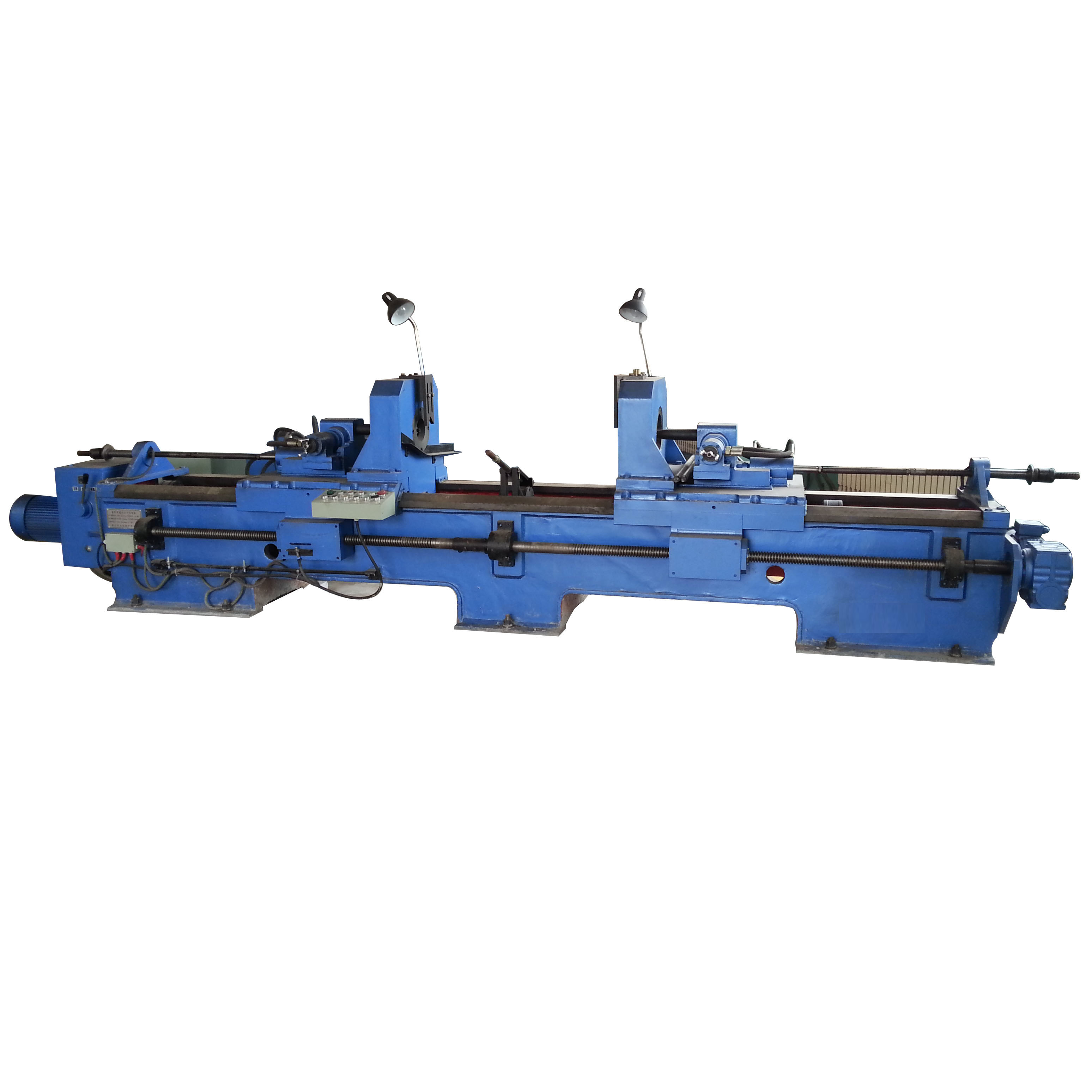

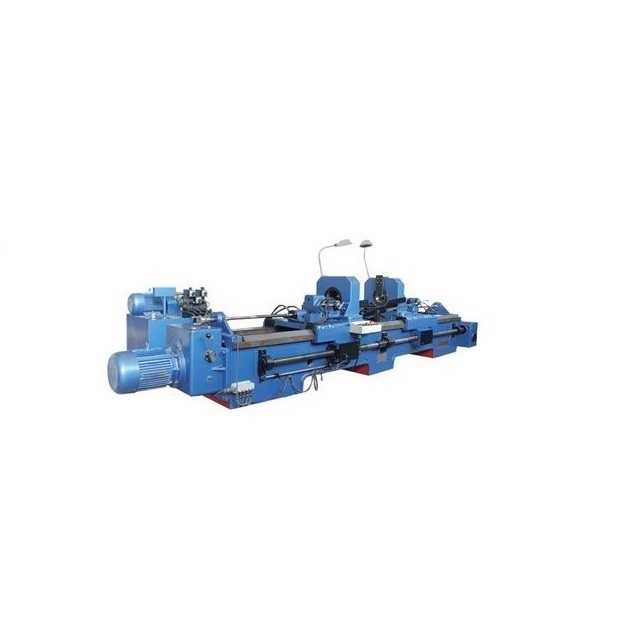

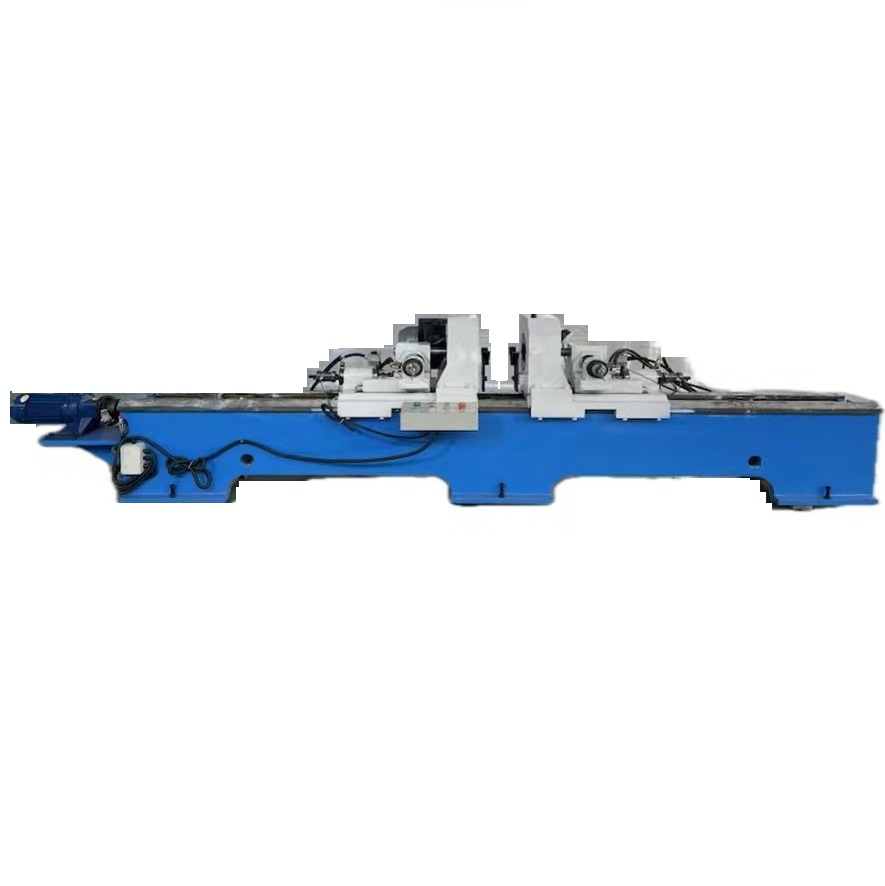

CE ISO China Mining Steel Conveyor Roller Making Machine Roller Pipe Both Ends Auto Inside Boring Hole Turning Machine
FEATURES AT A GLANCE
1.Used for the synchronous processing of the spigot at both ends of the steel pipe.
2.The vertical and horizontal feeding of the tool is driven by hydraulic pressure, which produces smooth feeding with high precision.
3.The workpiece’s clamping, positioning, tool feeding and withdrawing are automatically done in sequence with high productive efficiency.
PRODUCT OVERVIEW
This boring machine can boring steel pipe dia 76-219mm, length 200-2600mm. High efficiency, it can boring 1200pcs/8h. clamping over the complete aperture of the pipe eliminates problems due to ovality and improves quality, hydraulic tool feeding system ensures higher level of precision in boring. It is available to produce steel pipe belt conveyor roller in mining.
The machine adopts mechanical fast clamping device, clamping reliable; Clamping force is simple and convenient adjustment. Cutter feeding by hydraulic pressure drive, can be stepless speed regulation.meanwhile, left and right two feed oil cylinder adopt hydraulic synchronous circuit, can feed at the same time, the blade at the same time. Radial feed the manual, can adjust the knives accurately according to processing requirements; And equipped with hydraulic automatic knife when cutting tool feed to the desired location (dead point) automatically when a knife, avoid scratch has been processed on surface.
1. Pipe hole boring machine is applicated to automatically turning inside pipe.
2. PLC is used to control the whole turning process.
3. Machine used industrial PLC, 7inch human-computer interface and frequency speed adjuster to realize automatic turning process.
4.Simultaneously retract the blade. The radial feed is manually operated and can be precisely adjusted according to processing requirements.
5.Equipped with a hydraulic automatic tool release mechanism, it automatically releases the tool when it reaches the predetermined position to avoid scratching the machined surface.
6.In terms of electrical control, a control system with imported programmable logic controllers (PLCs) as the core is adopted.
7. 1500-2500 pcs/8h， pipeφ89*350*3.0
8.This equipment has a wide range of applications, strong reliability, and high work efficiency, especially suitable for the processing and production of batch idlers.
HAconveyor are recognized as an eminent manufacturer of quality assured range of PIPE BORING MACHINE. Working in close coordination with our skilled employees, we have been successful in delivering quality assured range of products that are in compliance with the set quality standards. Our quality controllers ensure that only top grade basic components are used in the manufacturing process.
PRODUCT SPECIFICATION
| specification | HA12-16X220 | HA12-22X260 |
| spindle center height of machine |
900mm | 900mm |
|
hydraulic system working pressure
|
1.5~4 MPa |
1.5~4 MPa |
| rotate speed of spindle |
350、500 r/min |
350、500 r/min |
| feeding speed |
hydraulic sleepless adjustable |
hydraulic sleepless adjustable |
| main driving motor |
7.5 kW 1450 r/min |
7.5 kW 1450 r/min |
| hydraulic system of the motor |
2.2 kW |
2.2 kW |
| slide moving motor |
3 kW |
3 kW |
| pipe diameter of turning |
Φ76~160 mm |
Φ76~219 mm |
| turning steel pipe length |
200~2200 mm |
200~2600 mm |
| turning depth | 0-70 mm |
0-70 mm |
| working speed |
40 s/pcs |
40 s/pcs |
| machine size | 5300×1120×1200 mm |
5700×1120×1200 mm |
| machine weight | 2800kg | 3300kg |
| processing transverse spacing tolerance for both ends of the seam |
≤0.1 mm |
≤0.1 mm |
| chamfer turning surface roughness Ra |
6.3~3.2 μm |
6.3~3.2 μm |

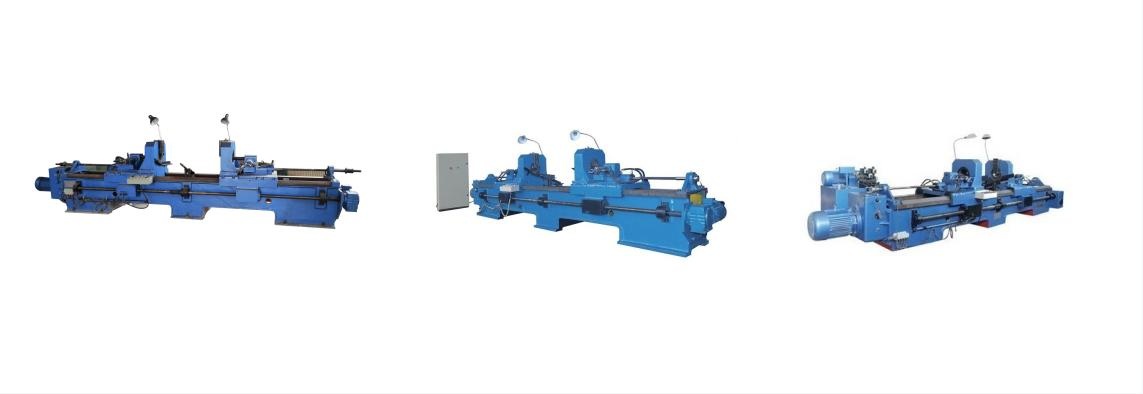

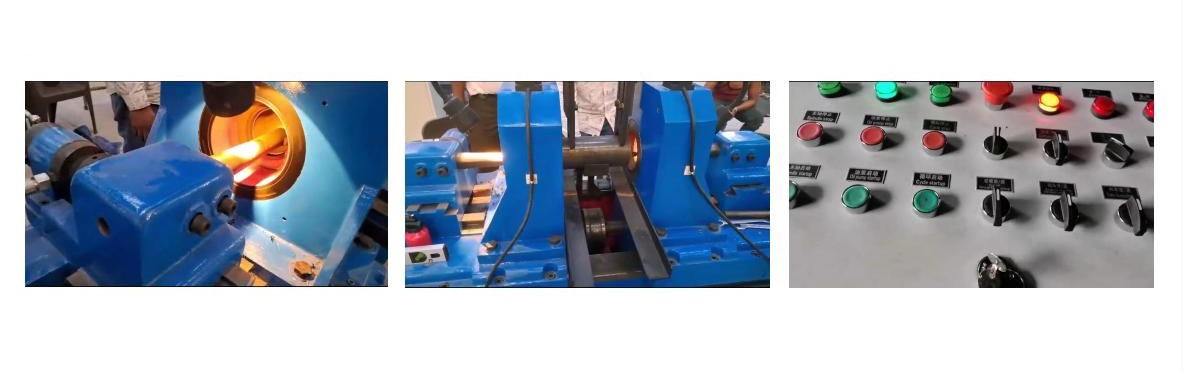

PRODUCT CNFIGURATION

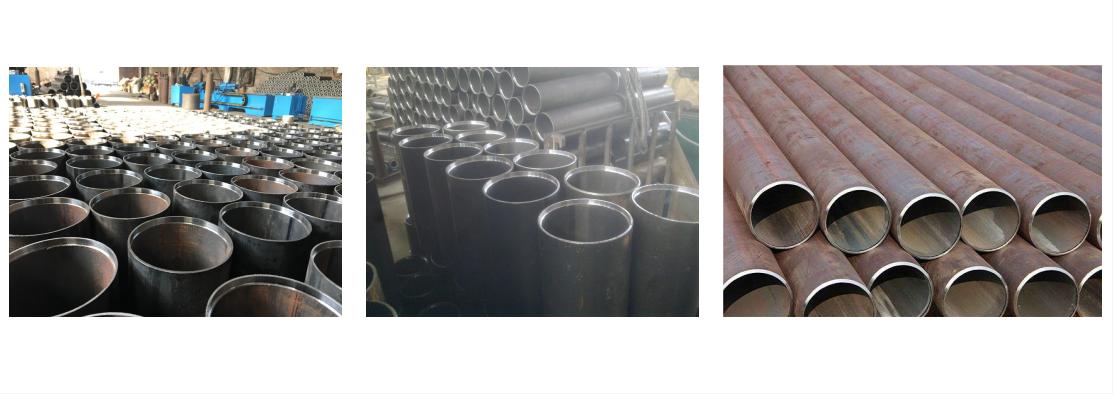

FINISHED STEEL PIPE HEADS

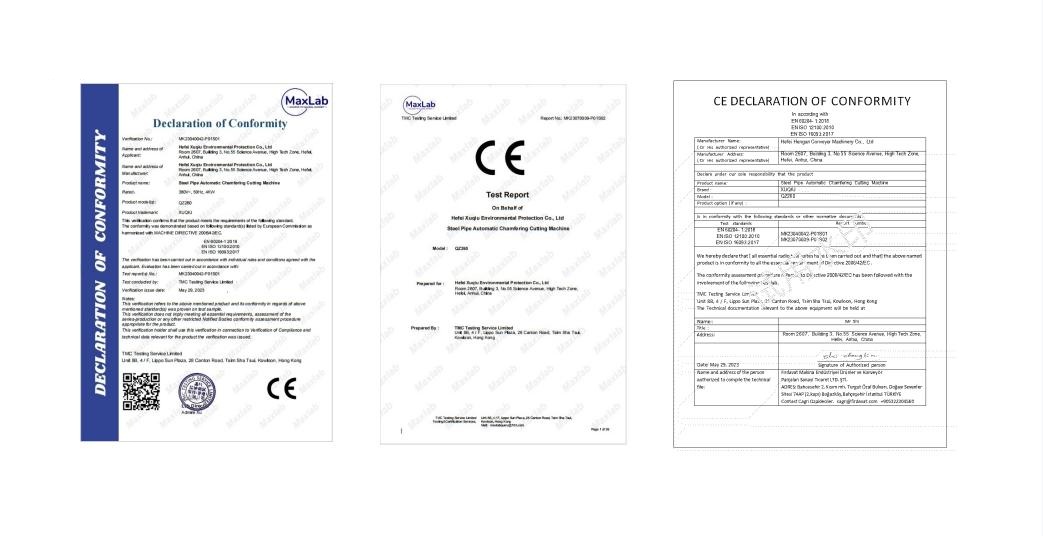

CE CERTIFICATE/ EU STANDARDS

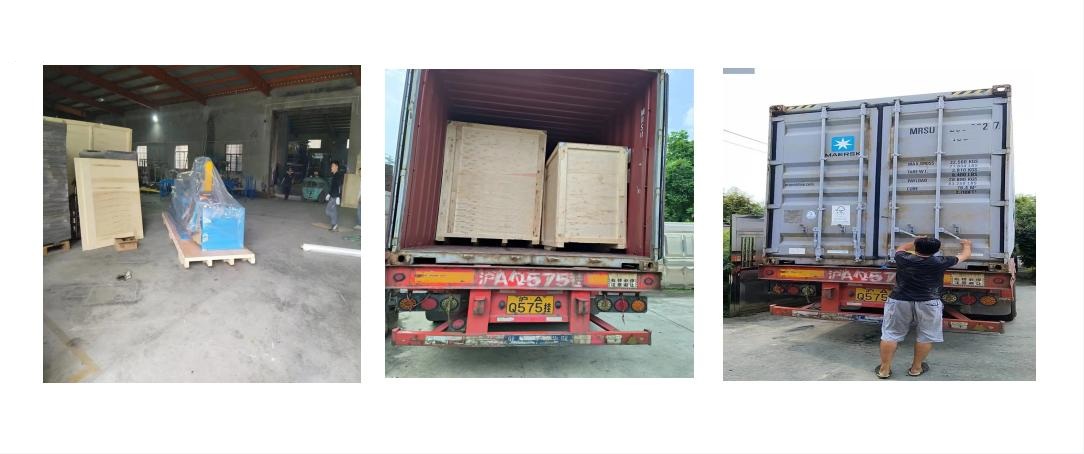

PACKAGE AND SHIPPING

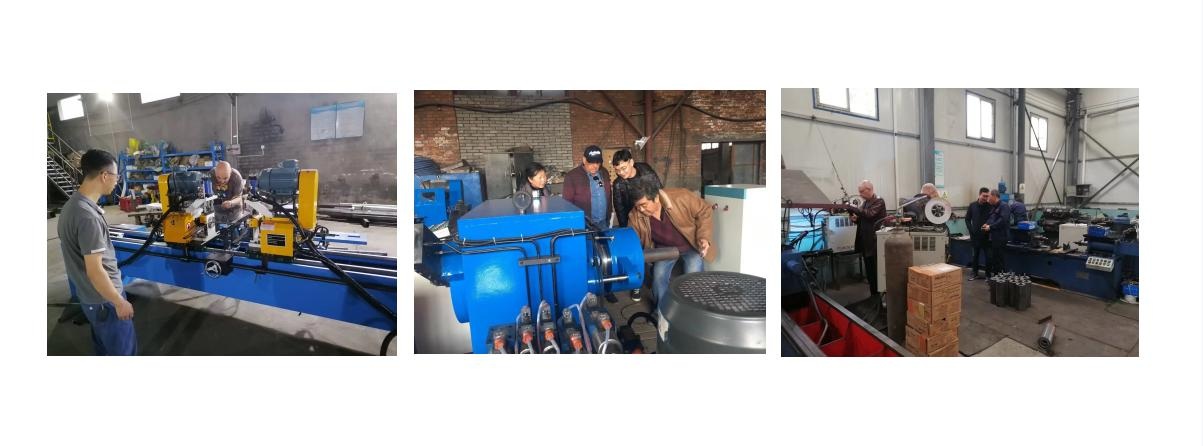

CUSTOMER VISITING FACTORY & CHECKING QUALITY

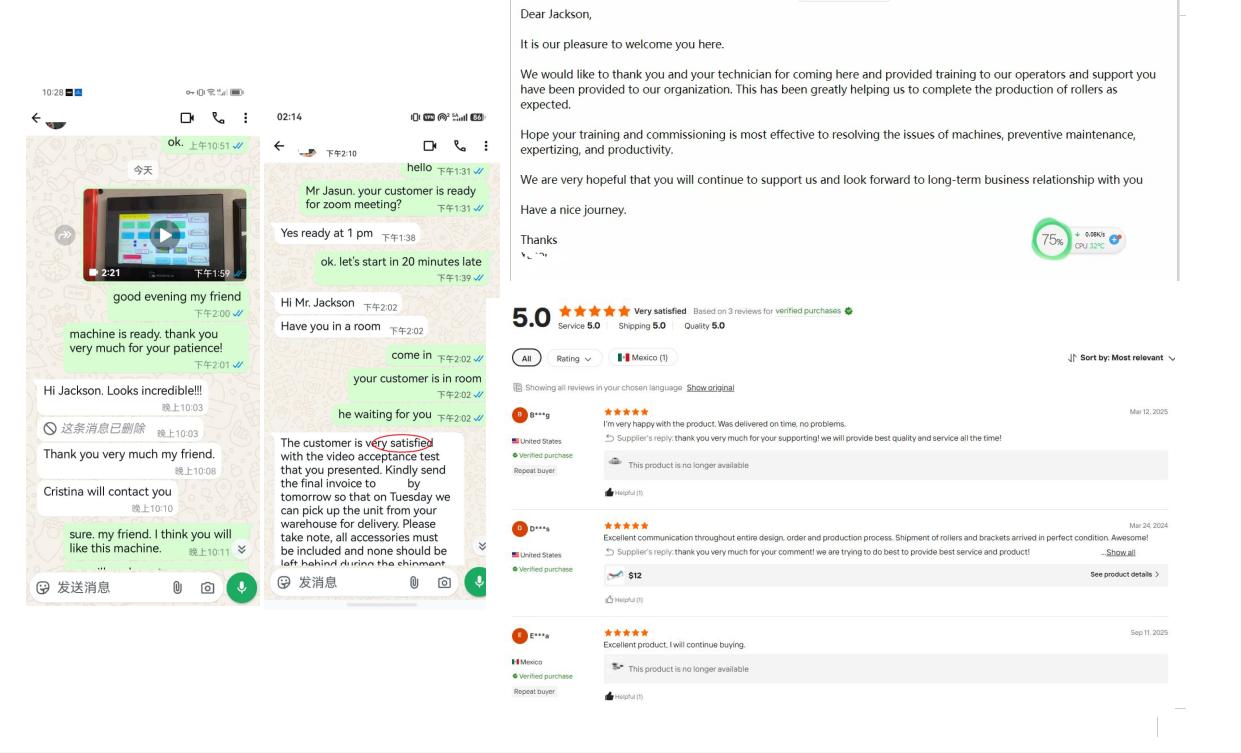

GOOD COMMENTS FROM CUSTOMERS
SALES & SERVICE NETWORK
FAQ
Q1：How can I know machine is that I need?
A1：Contact our sales, add whatsapp 008618226192162 or email haconveyor@gmail.com for machine detail and your requirement.
Q2 : Can you install machine or test machine in customer site?
A2 : Yes, we can go abroad to customer's site to install and test machine, and train their workers to use machine. or we can guide online.
Q3 : Do you provide spare parts?
A3 : Yes, we provide 2 years spare parts for free.
Q4 : What trade terms do you support?
A4 : We accept FOB China port, CIF, EXW.
Q5 : What payment terms do you accept?
A5 : We accept transfer by T/T, L/C at sight.
Q6 : What about your delivery time?
A6 : single machine is 15-20 nature days, machine line is not more than 60 nature days
