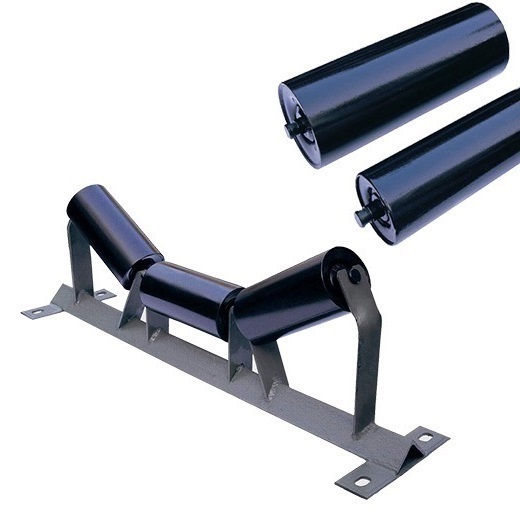

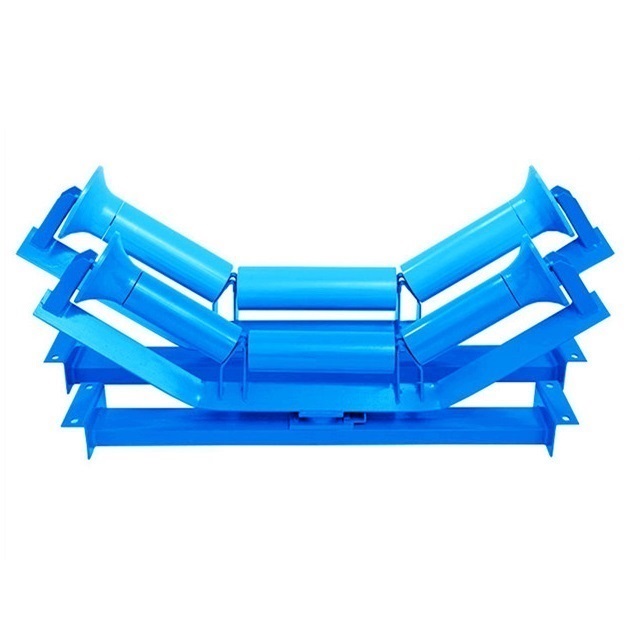

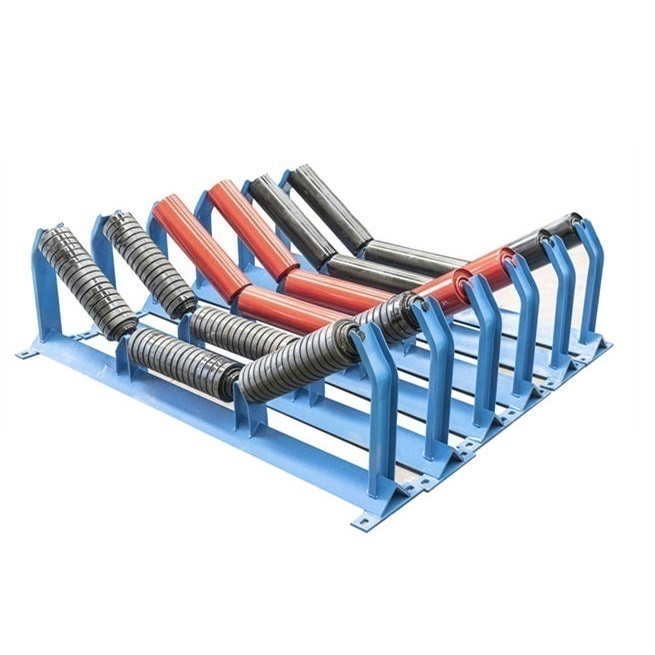

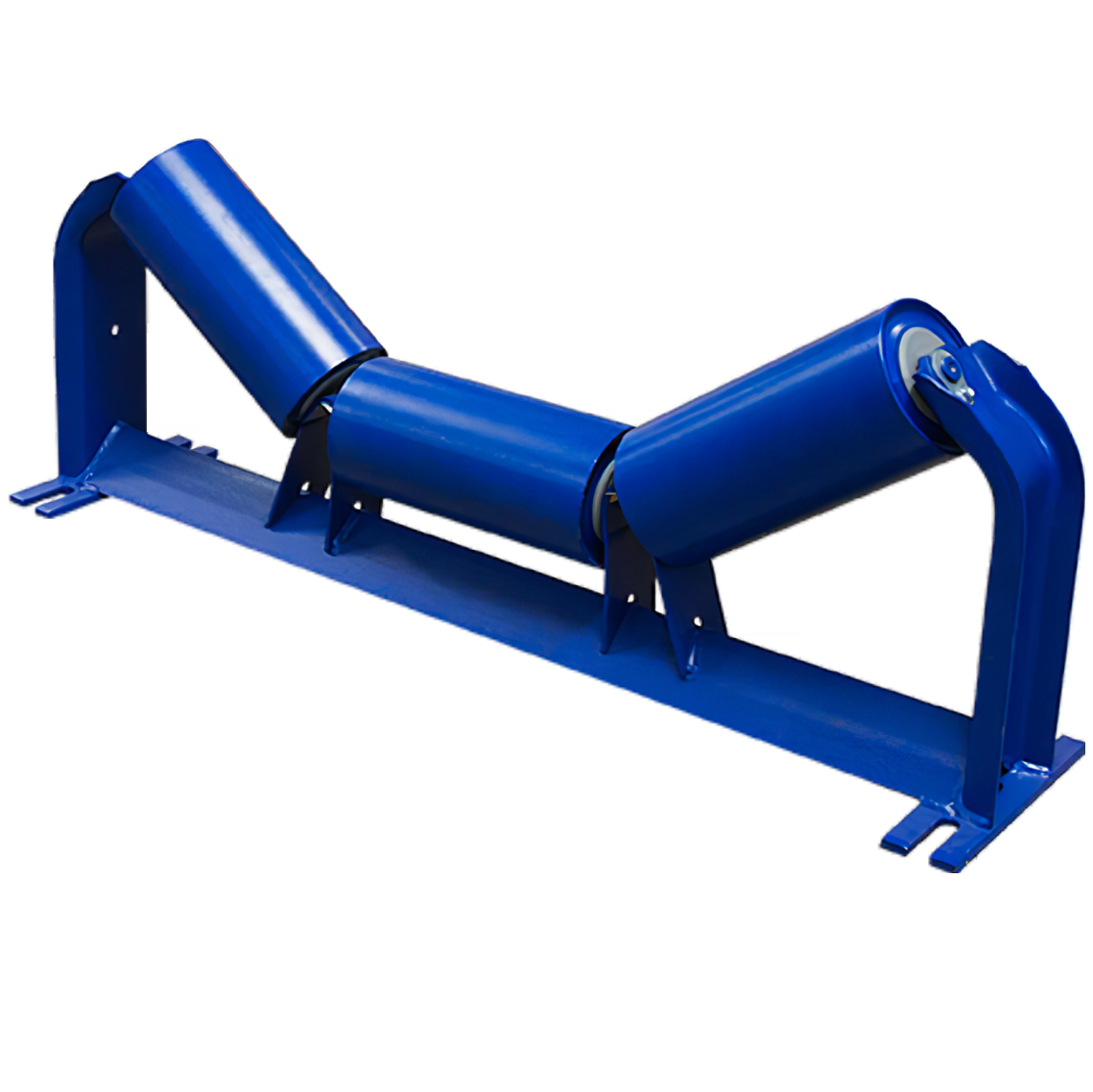

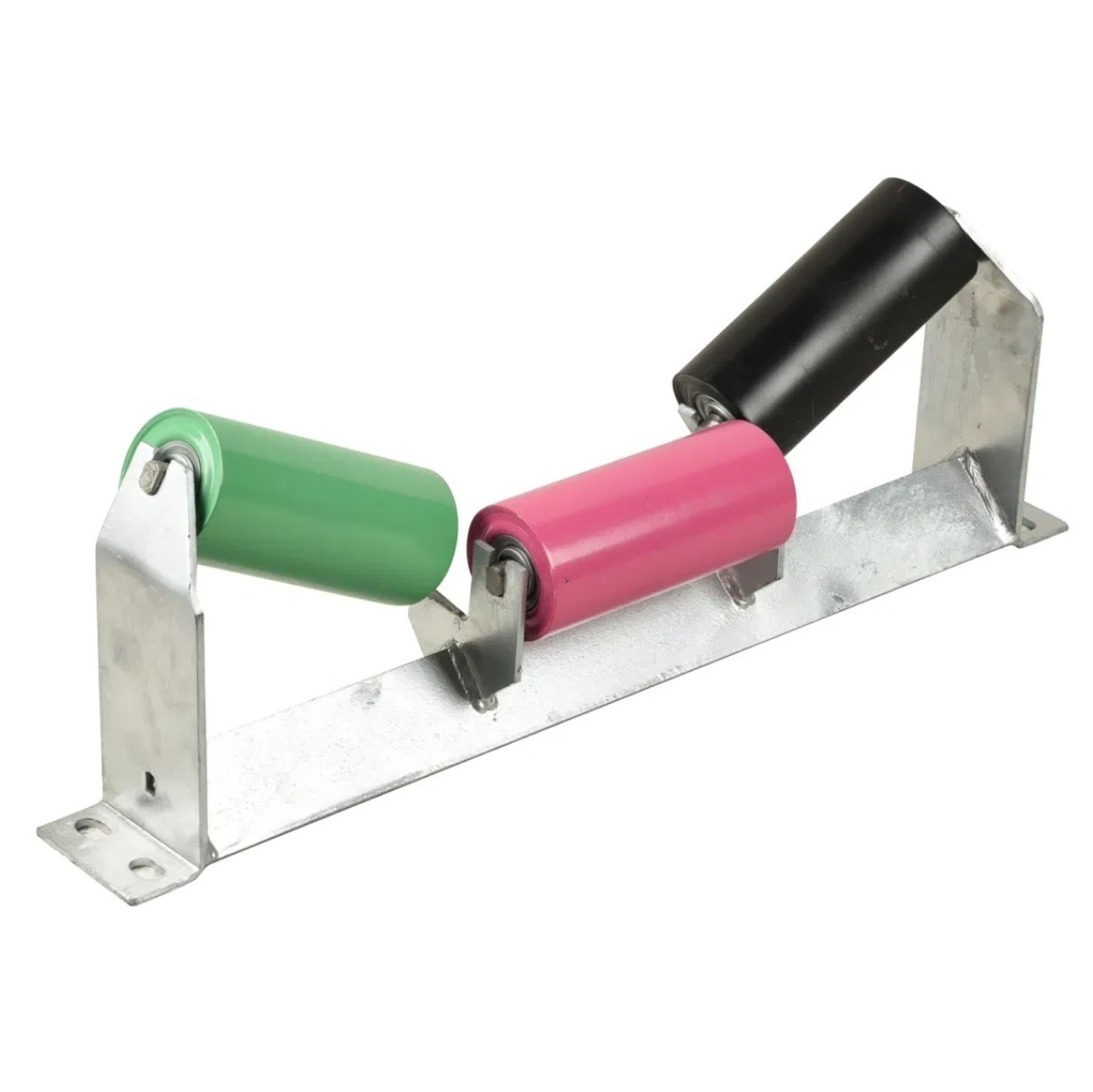

HAconveyor Top Sale Mining Heavy Duty Industrial Belt Steel Iron Conveyor Roller Idler Set with Frame Bracket

APPLICATION

PRODUCT OVERVIEW

Belt conveyors are customized and combined in an endless array of configurations, making each handling system as unique as the material it carries. The diverse configurability of belt conveyors has made them essential in feeding process operations, transporting material to storage, and navigating material through load-out. They have the capability to automate otherwise-arduous tasks, reduce labor requirements and human-material interaction, and effortlessly maneuver through difficult terrain and spatial restrictions.

The growing demand for raw materials, combined with a continued emphasis on improving efficiency will only increase the need for these flexible bulk handling systems as time goes on. And while the design of these machines is highly site and material specific, there are two requirements that the mining industry always demands of their belt conveyors: safety and reliability.

Idlers (rollers) are vital to the conveying process. They support the belt and conveyed material along its full length preventing it from stretching, sagging and eventually failing. Conveyor rollers and idlers are often required to operate in harsh environments such as dirty, dusty, high humidity, and drastically high or low temperatures.

HA conveyor is a stockist and distributor of trough idlers, rollers and frames. The company provides customers with quality products that meet all the world standards and are manufactured to be directly interchangeable with other recognised manufacturers brands, all at extremely competitive prices. HA conveyor idlers, rollers and frames are widely used in collieries, quarries, timber mills, gold mines, iron ore plants and bulk material handling facilities.

FEATURES OF STEEL IRON CONVEYOR ROLLER

1.Roller idlers Dia 50mm-219mm, length 190-3400mm, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc
2.Tube: Q235
3.Shaft: 45# STEEL
4.Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.
5.Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.
6. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.
7. Welding: Mixed gas shielded arc welding end
8. Painting: ordinary painting, hot galvanized painting, electric static spraying painting, baked painting.Besides we can manufacture the rollers and idlers according to the buyers' requirements

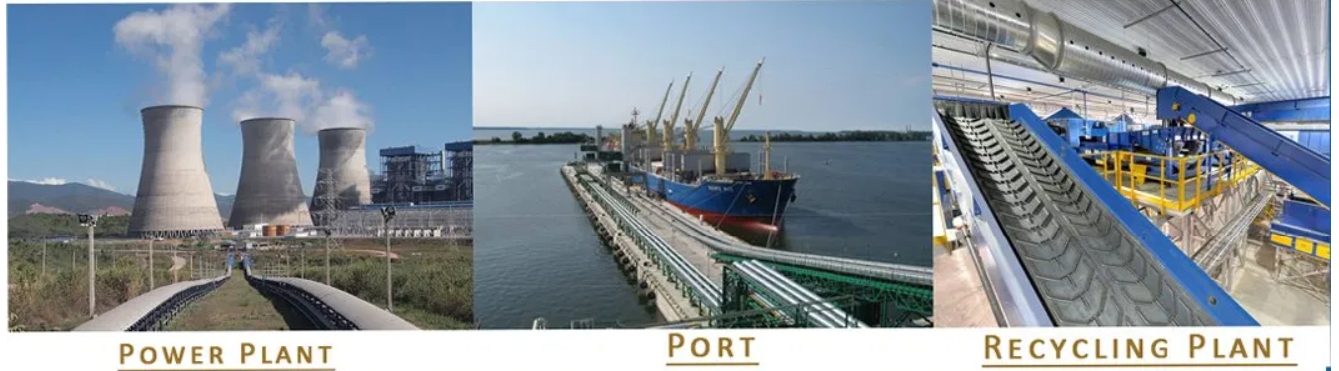

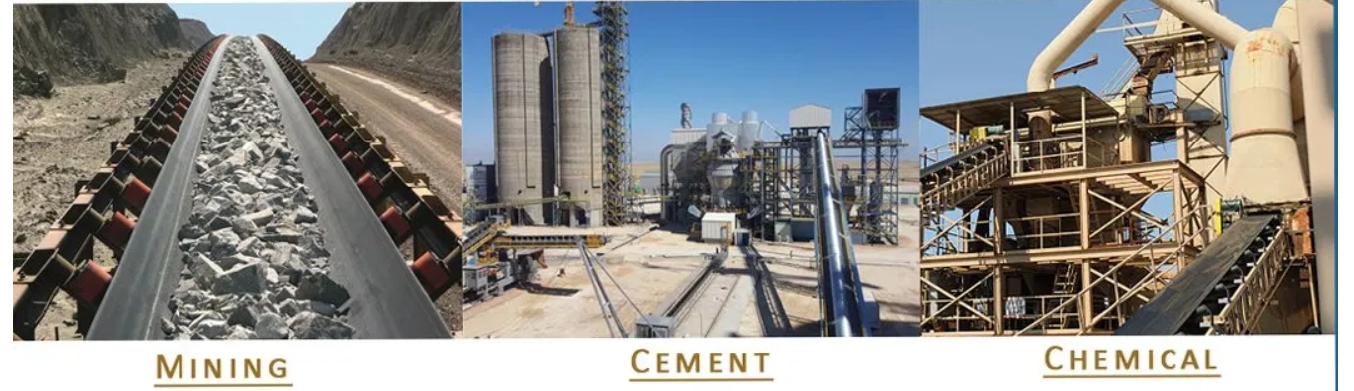

APPLICATION AREA

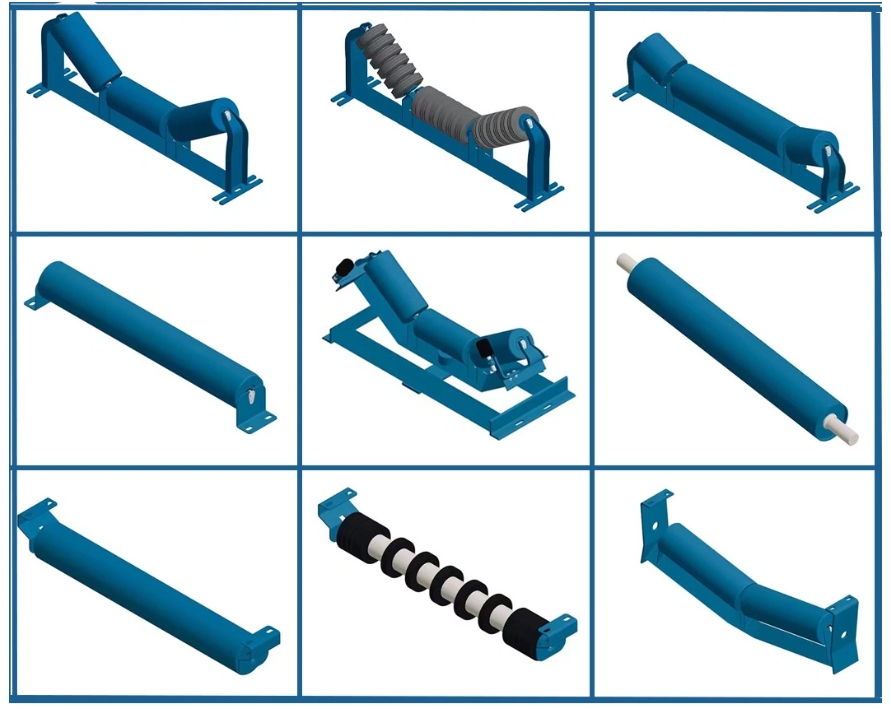

PRODUCT SPECIFICATION

CONVEYOR ROLLER PRODUCTION PROCESS

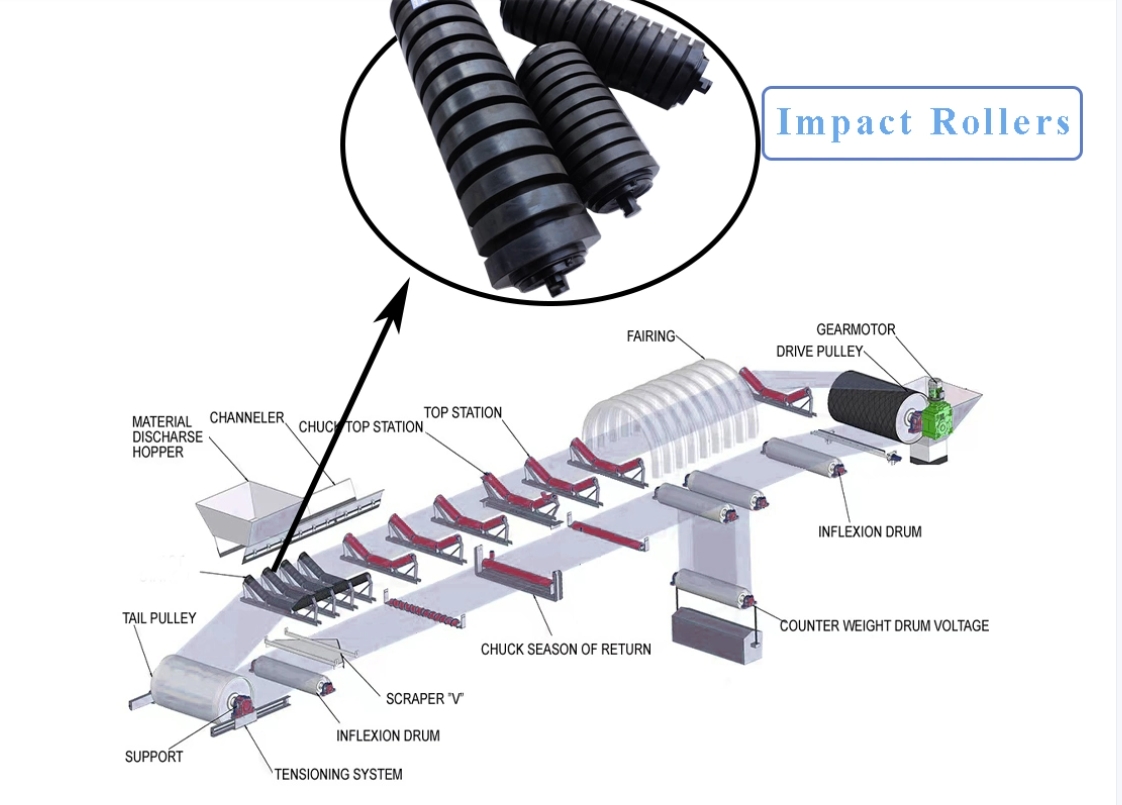

Impact Roller Idlers

Impact rollers are used as carrying rollers instead of normal steel rollers at a loading point. On steel roller there are rubber rings assembled, side by side, to absorb the weight and impact of material falling onto the belt. At the same time impact rollers reduce the shock and vibration through the steel structure.

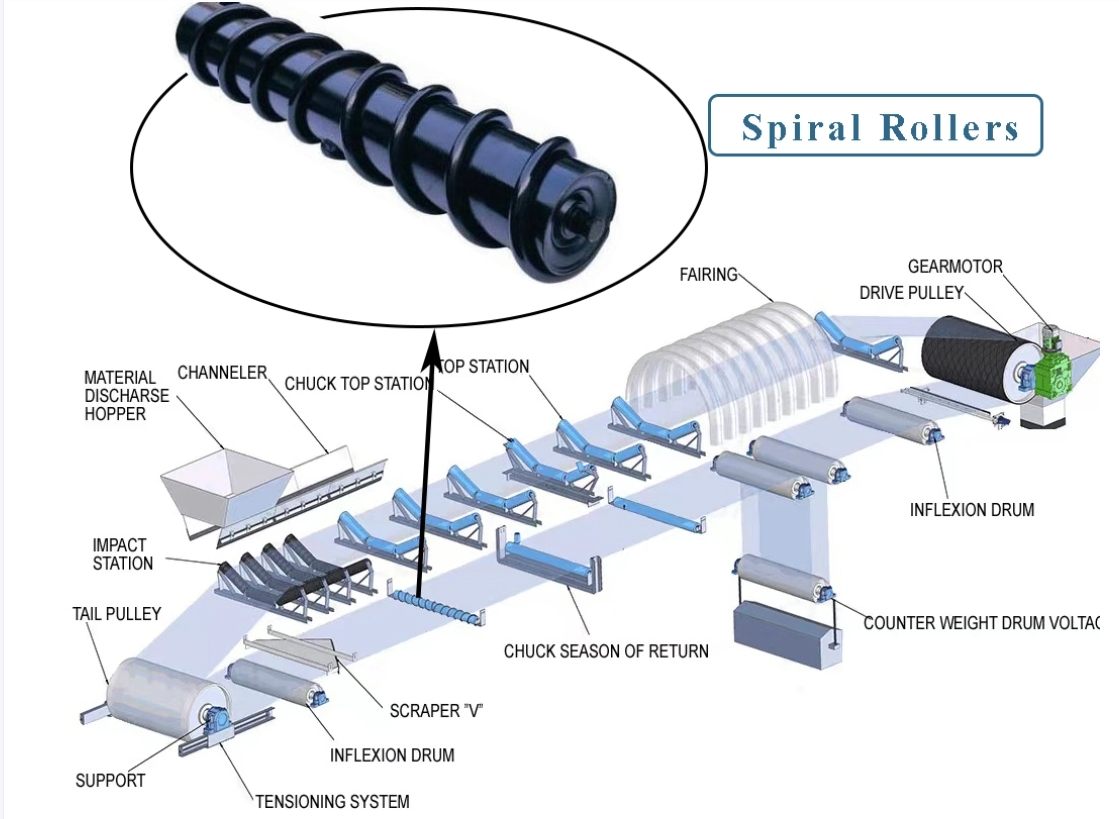

Steel Spiral Return Roller Idler

The steel spiral return idler are used as support for the return side of belt. Used where sticky, corrosive, or abrasive materials are present. Not only cleans itself, but keeps the belt cleans and double spiral configuration minimizes belt training problems such as misalignment.

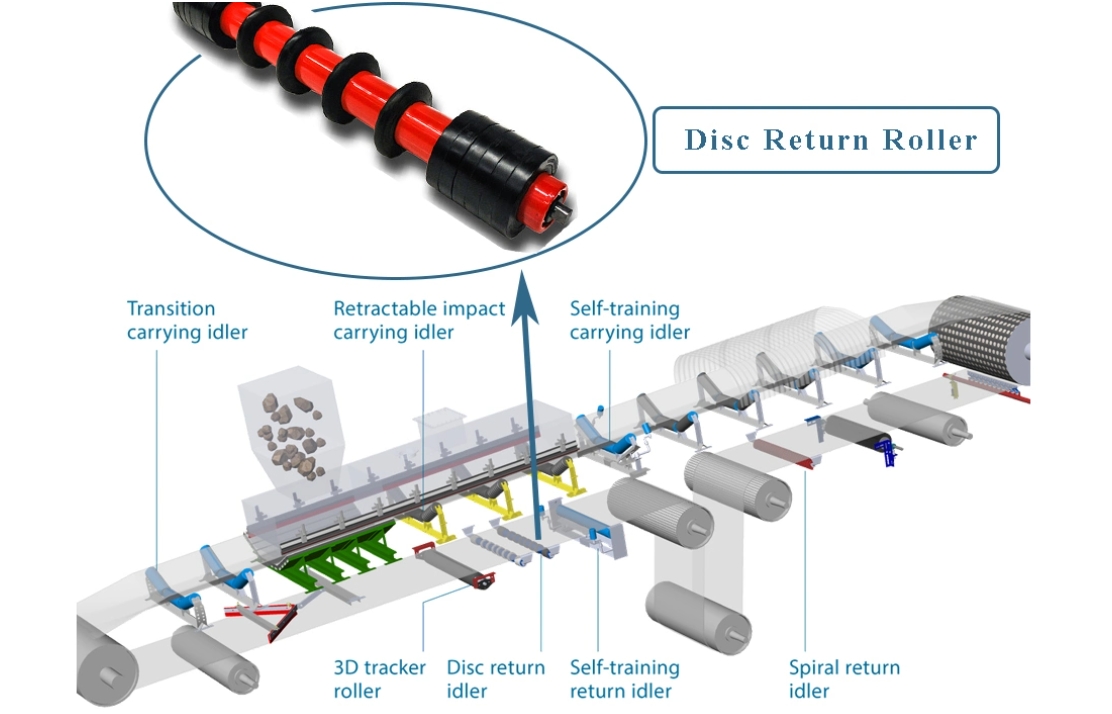

Rubber Disc Return Roller Idler

Disc Return Rollers are used where the material has the potential to collect on the surface of the rollers which could ultimatelylead to premature failure. The Ring minimises material build up on the roller shell. To maximise longevity, routine cleaning should still be observed. Rings come in rubber as standard.Rubber Disc Idler used in acid and alkali resistant industry of conveyor, comb idlers can replace the metal roller , nylon roller, long life , easy installation, custom center smooth transportation, reduce conveyor belt deviation and protection conveyor belts and other characteristics .

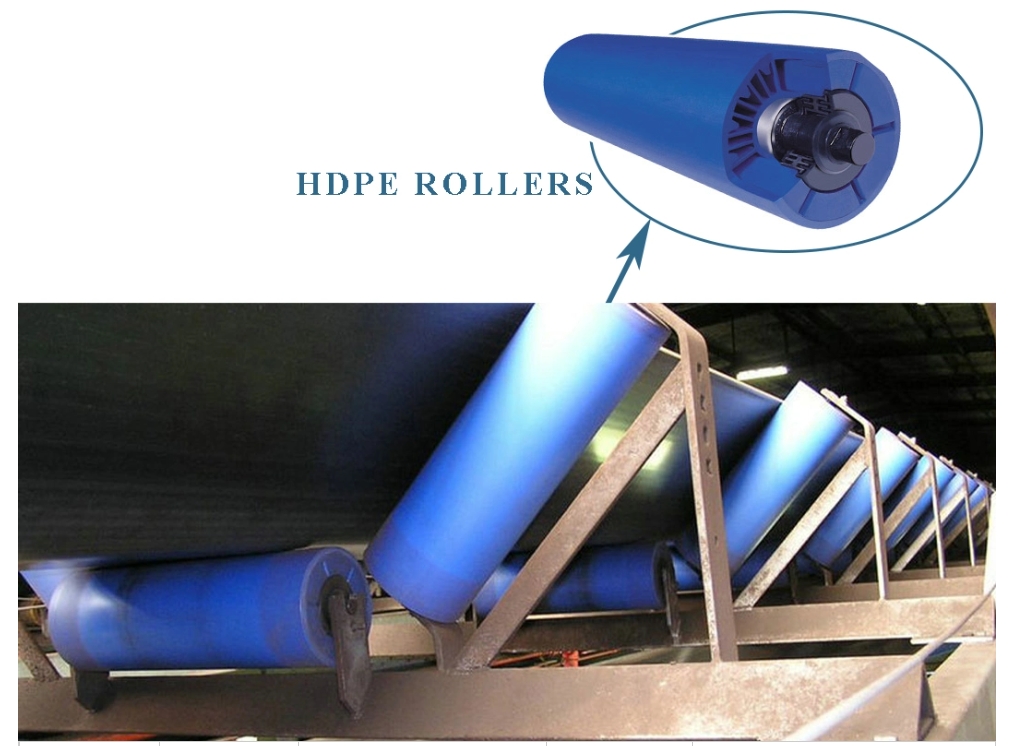

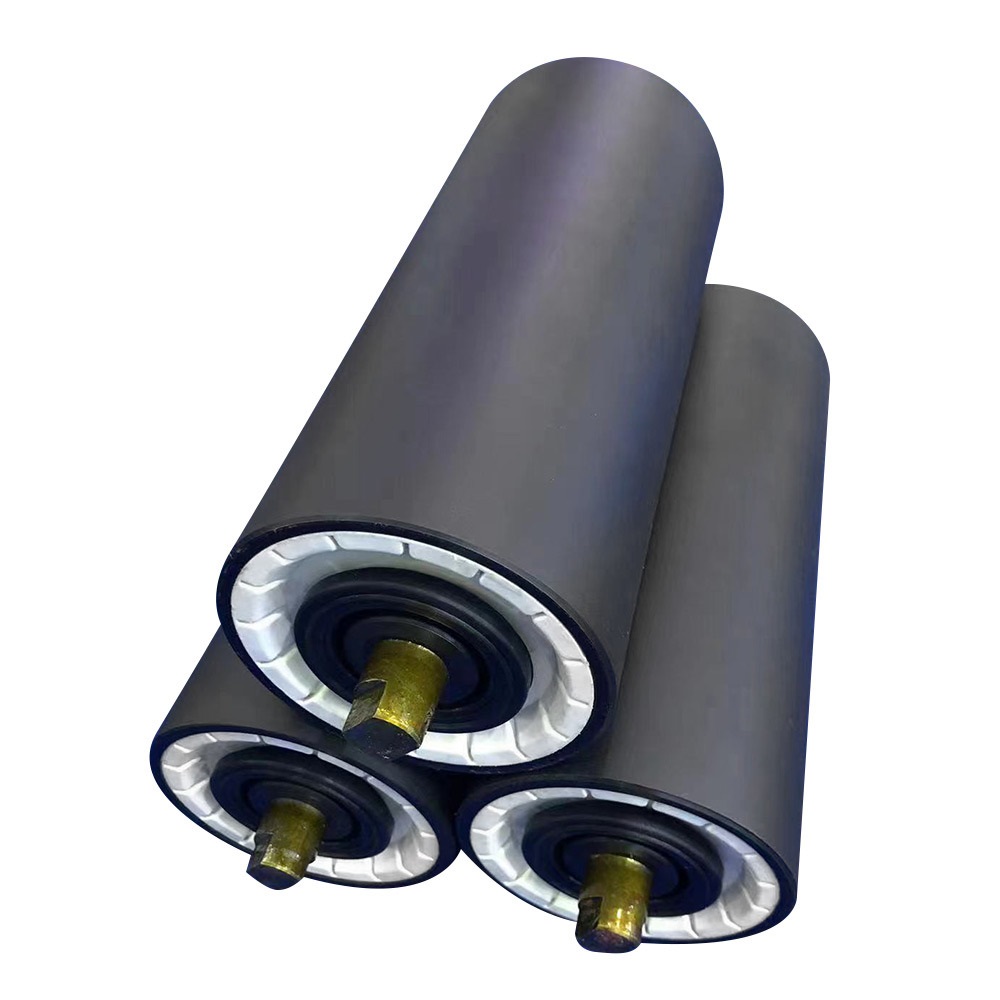

HDPE roller for mining and aggressive applications

HDPE contains carbon black increasing ultra violet resistance. Steel and HDPE tube combination provides significantly reduced weight. The bearing housing effectively locks the HDPE tube in position preventing movement along the steel tube.

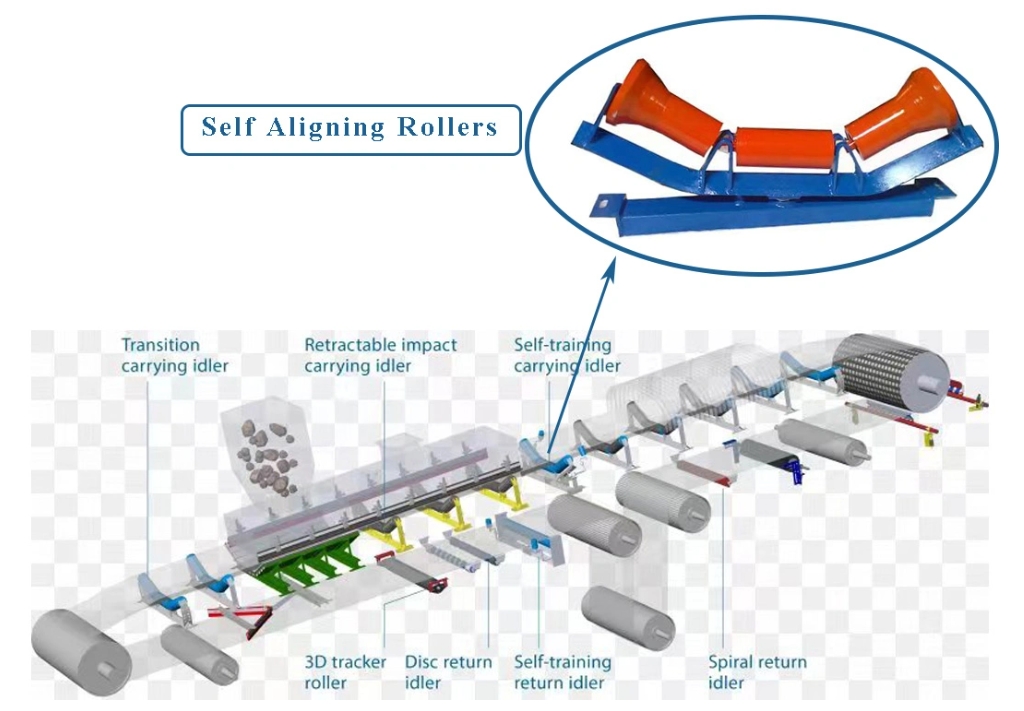

Self Aligning Training Roller Idelers

Friction self-aligning idler roller is used to adjust the belt deviation, it has a strong ability to prevent belt from being damaged and sideslip. It is based on the principle of idler curvature and frcition to prevent and correct belt sideslip. Friction f self-adjusting conveyor roller has great ability to protect conveyor belt from damage and running offline. When conveyor belt runs offline, which side the conveyor belt runs to, the frictional force of this side will be increased.

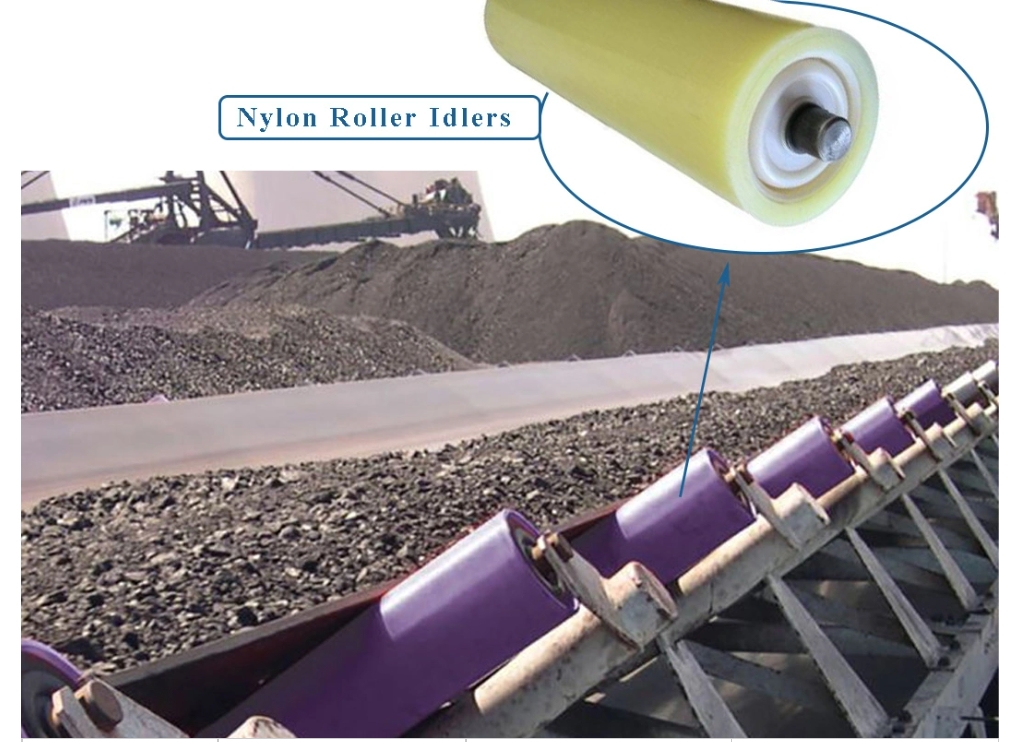

Nylon Rollers and Idlers

The Nylon Roller Idler is light in weight and easy to install in the air. The nylon wheel has been widely used as a tower crane accessory in various lifting equipment, and gradually replaces the normal metal pulley with its great advantages.

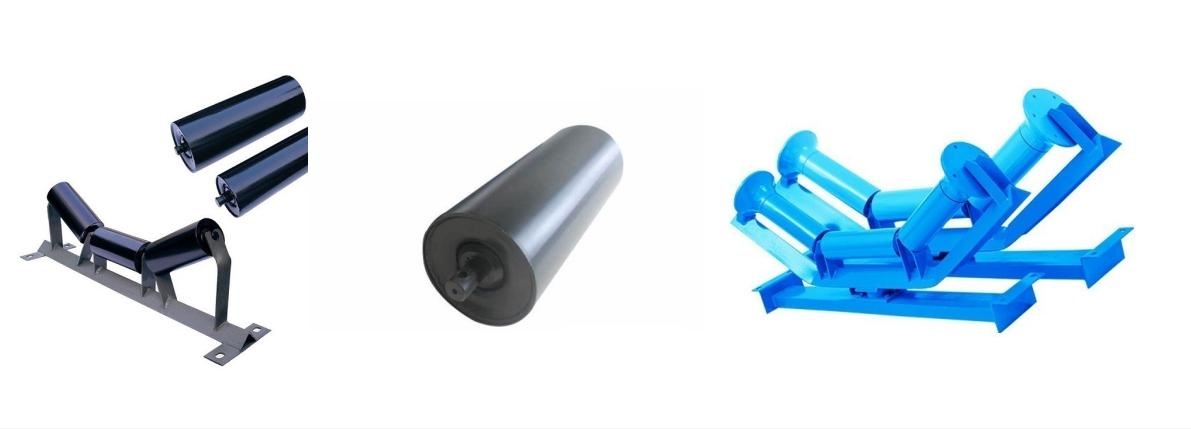

All kinds of rollers, idlers, pulleys, rubber belts,belt conveyors can be provided:

FAQ

Q1：How can I know rolleris that I need?
A1：Contact our sales, add whatsapp 008618226192162 or email haconveyor@gmail.com for roller detail and your roller drawing.

Q2 : Can you install roller in customer site?
A2 : Yes, we can go abroad to customer's site to install and test machine, and train their workers to use roller. or we can guide online if custommer buys our conveyor project.


Q3 : Do you provide spare parts?
A3 : Yes, we provide 2 years spare parts for free.


Q4 : What trade terms do you support?
A4 : We accept FOB China port, CIF, EXW.


Q5 : What payment terms do you accept?
A5 : We accept transfer by T/T, L/C at sight.

Q6 : What about your delivery time?
A6 : single roller is 15-20 nature days, conveyor line is not more than 60 nature days.
