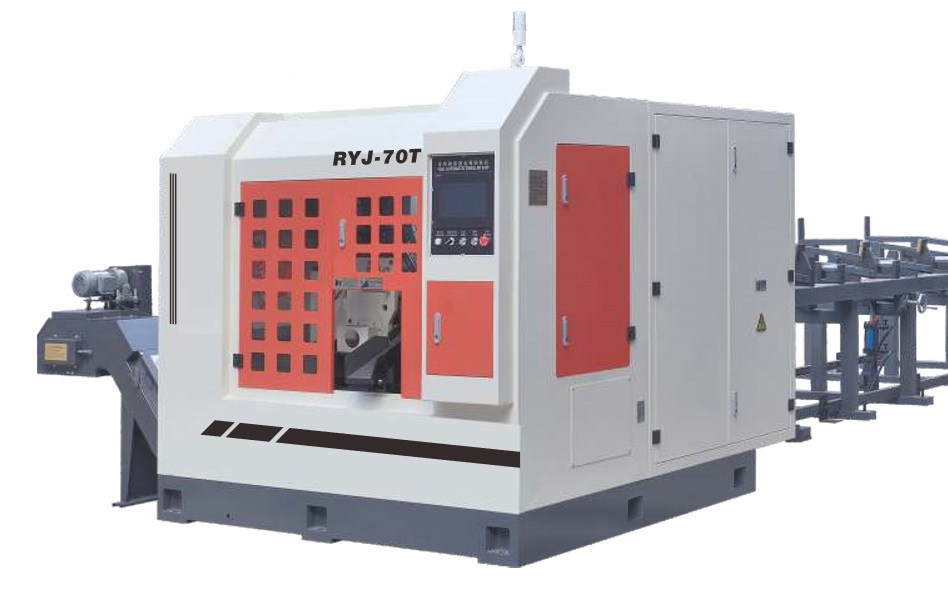

HAconveyor Dia 70mm Steel Iron Shaft Solid Bar Auto Cutting off Machine

FEATURES AT A GLANCE

1. Innovative gearbox design achieves zero-backlash transmission, extending the saw blade's lifespan.
2. The saw blade is held at three points to reduce vibration and increase blade life.
3. Cutting and feeding are controlled by AC servo motors, ensuring stable cutting and precise feeding.
4. The machine integrates automatic flipping, automatic feeding, scrap separation, and automatic chip discharge, saving 80% of labor costs.
5. User-friendly interface with a touchscreen makes operation simple; even general operators can handle it.
6. The machine supports manual, semi-automatic, and fully automatic operation modes.

PRODUCT OVERVIEW

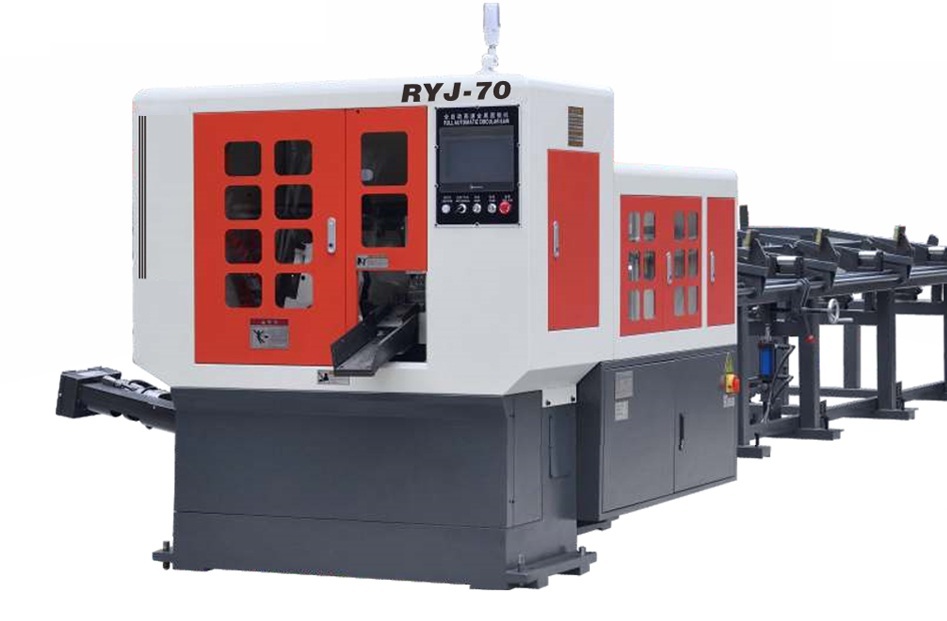

RYJ-70 full-automatic high-speed metal circular saw is a conventional machine tool produced by our company, which is mainly composed of machine tool bed, power head, feed system, clamping device, automatic feeding, bearing frame, feeding mechanism, distributing device, hydraulic system, electrical system, spray cooling system, automatic lubrication system, spiral chip conveyor, saw blade cleaning device, etc,

1. Machine bed: The main body of the bed is made of high-quality and high-strength special materials cast as a whole. Has good overall rigidity and strength
The characteristics of high, impact resistance, and small deformation can greatly improve the overall rigidity and sawing stability of the machine tool.

2. Power head part: The power head part is a key core component of the entire equipment, and the internal components of this part are made of imported well-known brands, ensuring the smooth operation of the circular saw machine as a whole and the service life of this core component. The adoption of a unique saw blade stabilization system can greatly improve the rigidity of clamping the circular saw blade, reduce the vibration and deflection of the saw blade, and greatly improve the service life of the saw blade, ensuring reliable cutting accuracy.

3. Feed system: The ball screw driven by the servo motor drives the power head to perform scissor type strong feed, which can quickly and accurately cut the clamped workpiece.

4. Clamping device: It consists of two sets of horizontal and vertical clamping devices. The front and rear sets of devices can be clamped and released simultaneously, ensuring the smoothness of the sawing process.

5.Automatic feeding, feeding frame, and feeding mechanism: The automatic feeding adopts AC servo control high-precision ball screw to ensure reliable feeding accuracy. The material rack is used to arrange the raw materials to be cut in rows, and can hold rod materials with a maximum length of 6m. The feeding mechanism uses the action of the feeding oil cylinder to feed a rod to the automatic feeding tiger jaw, ultimately achieving automatic feeding, greatly reducing the labor intensity of workers and reducing sawing assistance time.

6.Material sorting device: It can facilitate the collection and processing of material heads and tails, and automatically achieve the separation and placement of heads and tails from finished products.

7.Hydraulic system: composed of oil tank, centralized block, hydraulic pump, hydraulic components, actuating components, etc., all of which use internationally renowned brand Taiwan hydraulic components, with low failure rate, reliable performance, and stable and reliable implementation of various program actions.


8.Electrical system: consisting of electrical cabinet, touch screen, buttons PLC、 Composed of motors, contactors, relays, heat exchangers, switches, and auxiliary components. The machine tool can achieve full process CNC, which means that except for the manual placement of the material rack in rows, from automatic material feeding to sawing completion, including material head and tail processing, all are automatically completed by the sawing line. High degree of automation, various safety protection devices can ensure the safe and smooth operation of the entire sawing process.


9.Spray cooling system: famous brand spray cooling and lubrication system is adopted, and the system adopts the micro lubrication method of environmental protection cutting oil for accurate measurement. The carefully designed nozzle sprays high-efficiency cutting oil onto the saw teeth to reduce cutting heat. The nozzle also sprays high-efficiency cutting oil onto both sides of the saw blade for lubrication, which can improve production efficiency, reduce production costs, prevent environmental pollution, and improve the quality of the cutting edge, extending the service life of the saw blade.

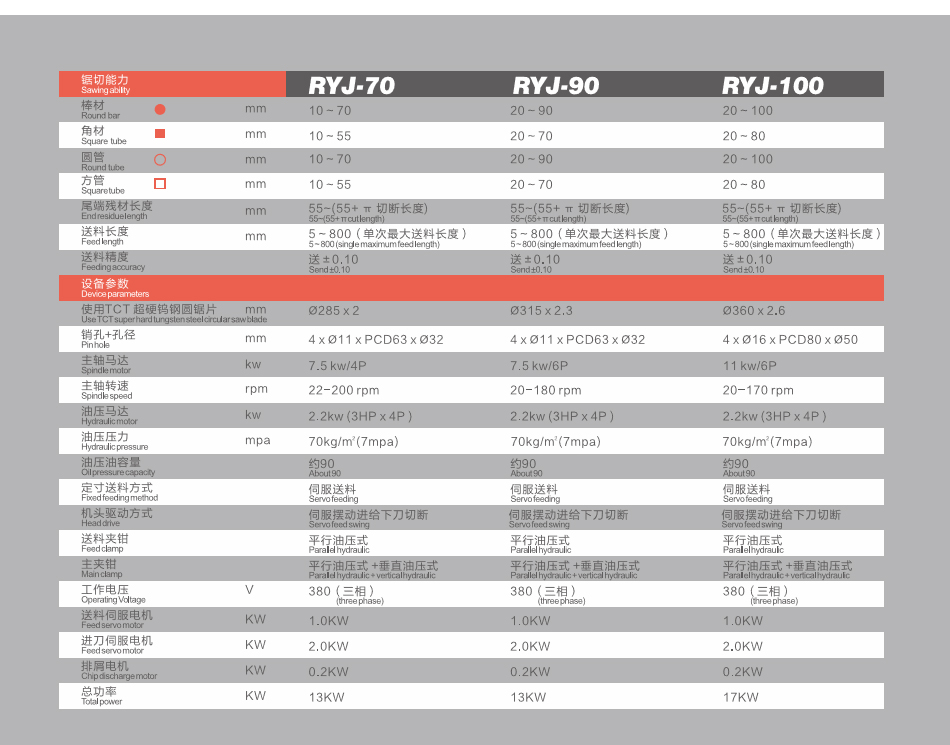

PRODUCT SPECIFICATION

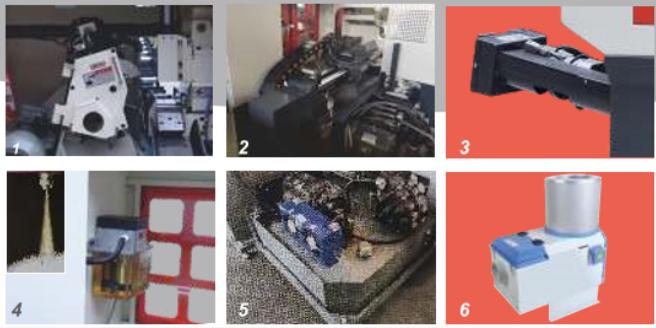

PRODUCT CONFIGURATION

1.servo drive head and closing device   2.servo feeding system   3.spiral chip conveyor

4.spray cooling system    5.hydraulic control system   6.oil mist seperator

CE CERTIFICATE/ EU STANDARDS

CUSTOMER VISITING FACTORY & CHECKING QUALITY

PACKAGE & SHIPPING

GOOD COMMENT FROM CUSTOMERS

SALES & SERVICE NETWORK

FAQ

Q1：How can I know machine is that I need?
A1：Contact our sales, add whatsapp 008618226192162 or email haconveyor@gmail.com for machine detail and your requirement.

Q2 : Can you install machine or test machine in customer site?
A2 : Yes, we can go abroad to customer's site to install and test machine, and train their workers to use machine. or we can guide online.


Q3 : Do you provide spare parts?
A3 : Yes, we provide 2 years spare parts for free.


Q4 : What trade terms do you support?
A4 : We accept FOB China port, CIF, EXW.


Q5 : What payment terms do you accept?
A5 : We accept transfer by T/T, L/C at sight.

Q6 : What about your delivery time?
A6 : single machine is 15-20 nature days, machine line is not more than 60 nature days.
